LED Module Stadium Light 5050

Introducing the LED Module Stadium Light 5050, a cutting-edge lighting solution engineered to illuminate large venues with unmatched brilliance.
Powered by advanced 5050 SMD LED technology, this stadium light delivers exceptional brightness, superior uniformity, and enhanced energy efficiency, making it perfect for sports arenas, outdoor events, and expansive spaces.

Designed with robust, weather-resistant materials, the LED Module Stadium Light 5050 ensures reliable performance in all environmental conditions. Its long-lasting durability and low maintenance needs provide a cost-effective solution for high-intensity lighting demands.

Applications


Certification 1

Industrial

Certification 1

Construction Site

Certification 1

Landscape Elevation

Certification 1

Artificial Playing Areas

Certification 1

Banner / Hoarding

Certification 1

Tunnels

Certification 1

Stadiums


Certifications


Certification 1
Certification 2
Certification 3
Certification 4
Certification 5
Certification 6

Specifications


  • Light Source :
  • SMD LED 5050 5w
  • Efficiency :
  • > 88%
  • Power Factor :
  • > 0.95
  • THD :
  • < 10%
  • Lumen Efficiency :
  • 120 - 130 Lm/W
  • Surge Protection :
  • 4 - 10 KvA
  • CCT :
  • 3000K - 6500K
  • IP Rating :
  • IP 65
  • Beam Angle :
  • 30°
  • Housing Body :
  • Aluminium Extrusion
  • Driver Details :
  • BIS Certified
    Over / Under Voltage Protection
    Over Temperature Protection
    440v Sustainability (48hrs)
    Short Circuit Protection
    Open Circuit Protection

Dimensions

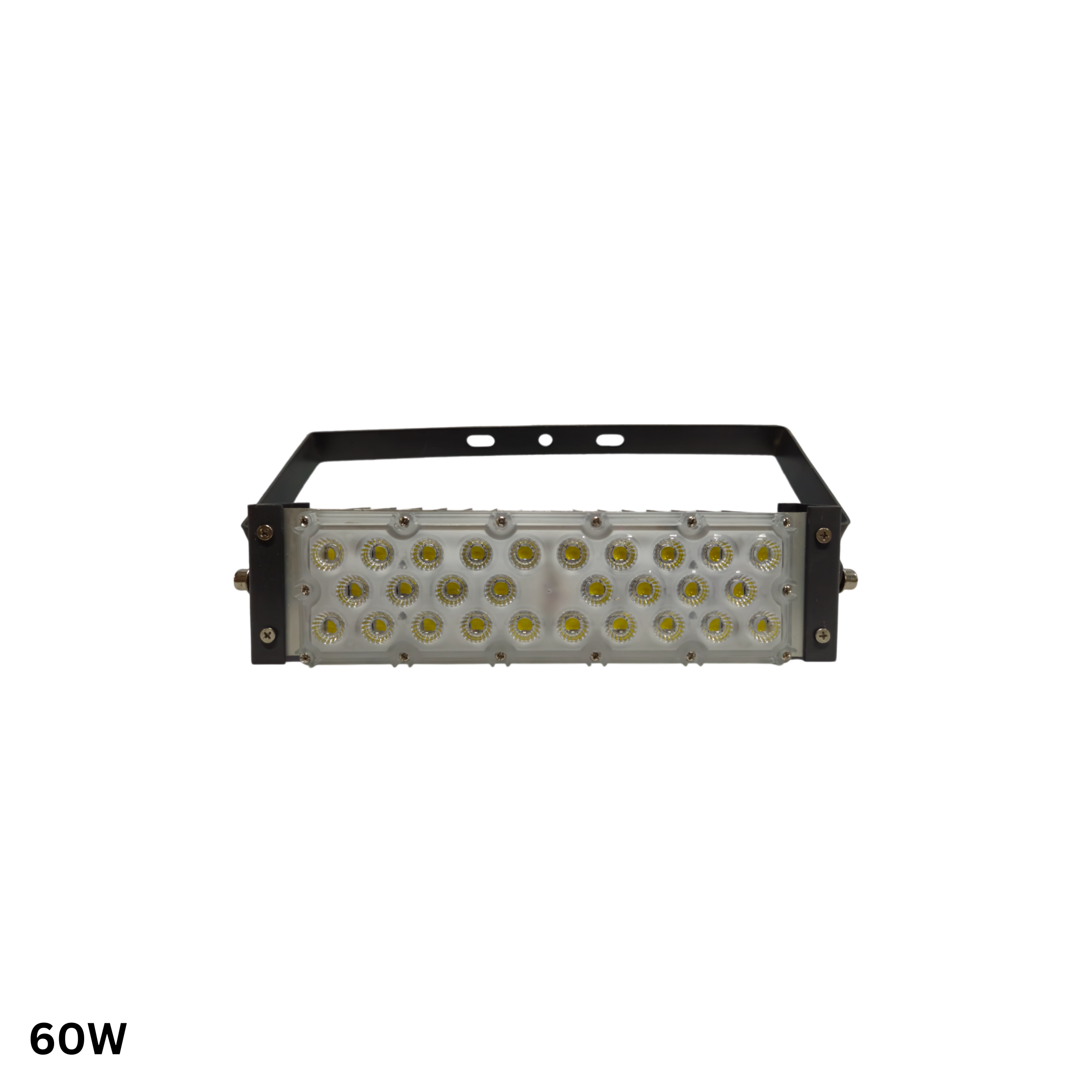

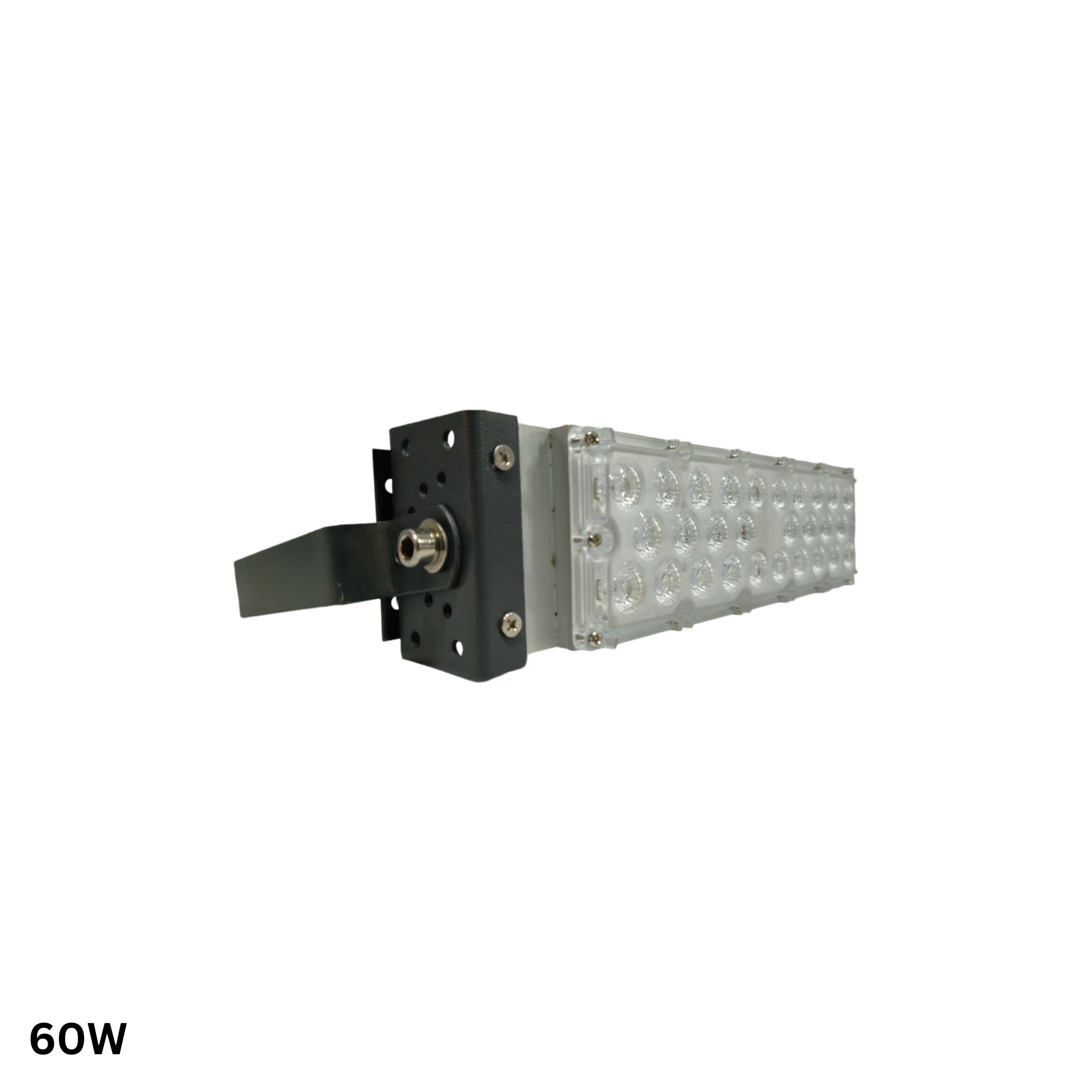

  • 60 W : 30 x 7.8 x 17.5 cm

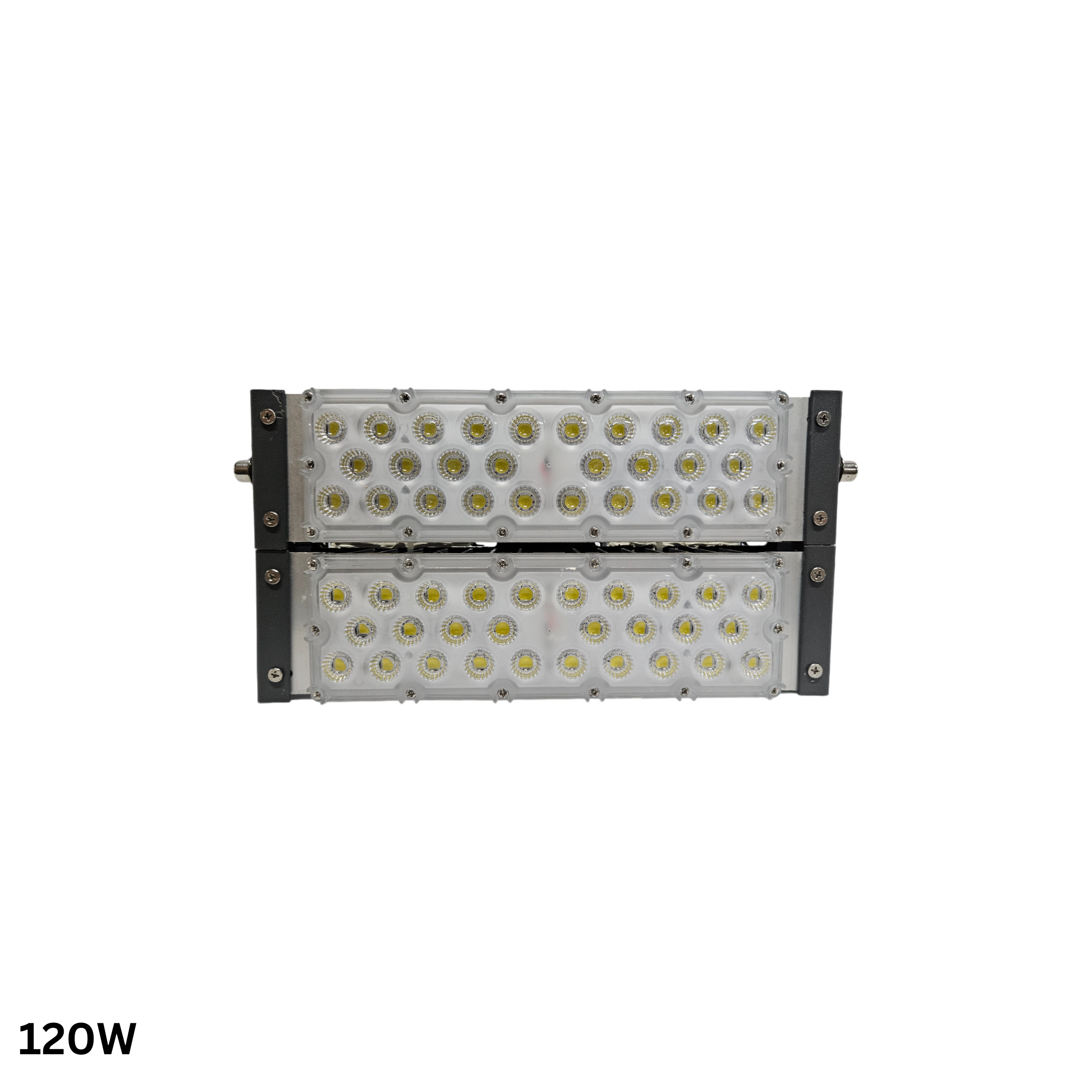

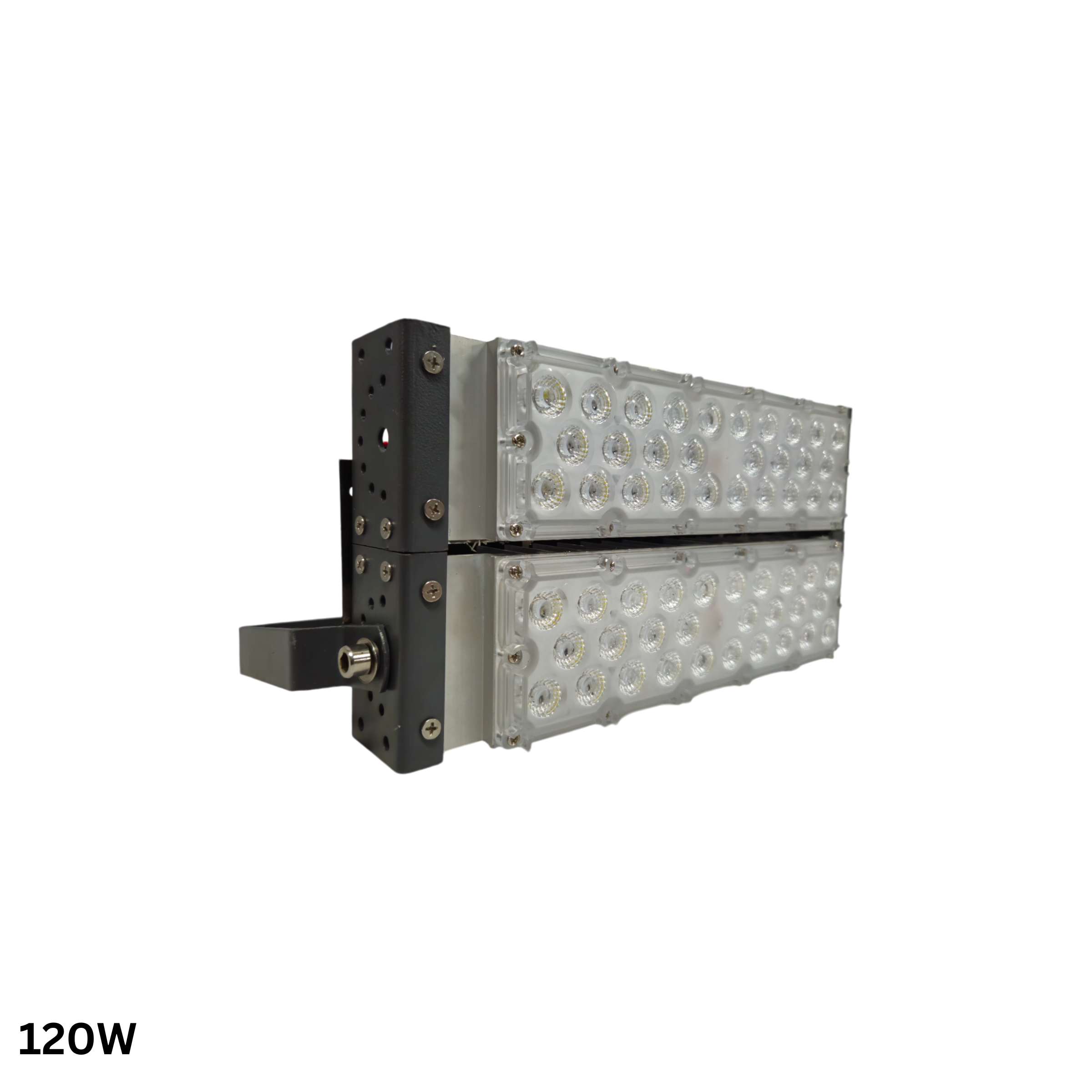

  • 120 W : 30 x 15.6 x 17.5 cm

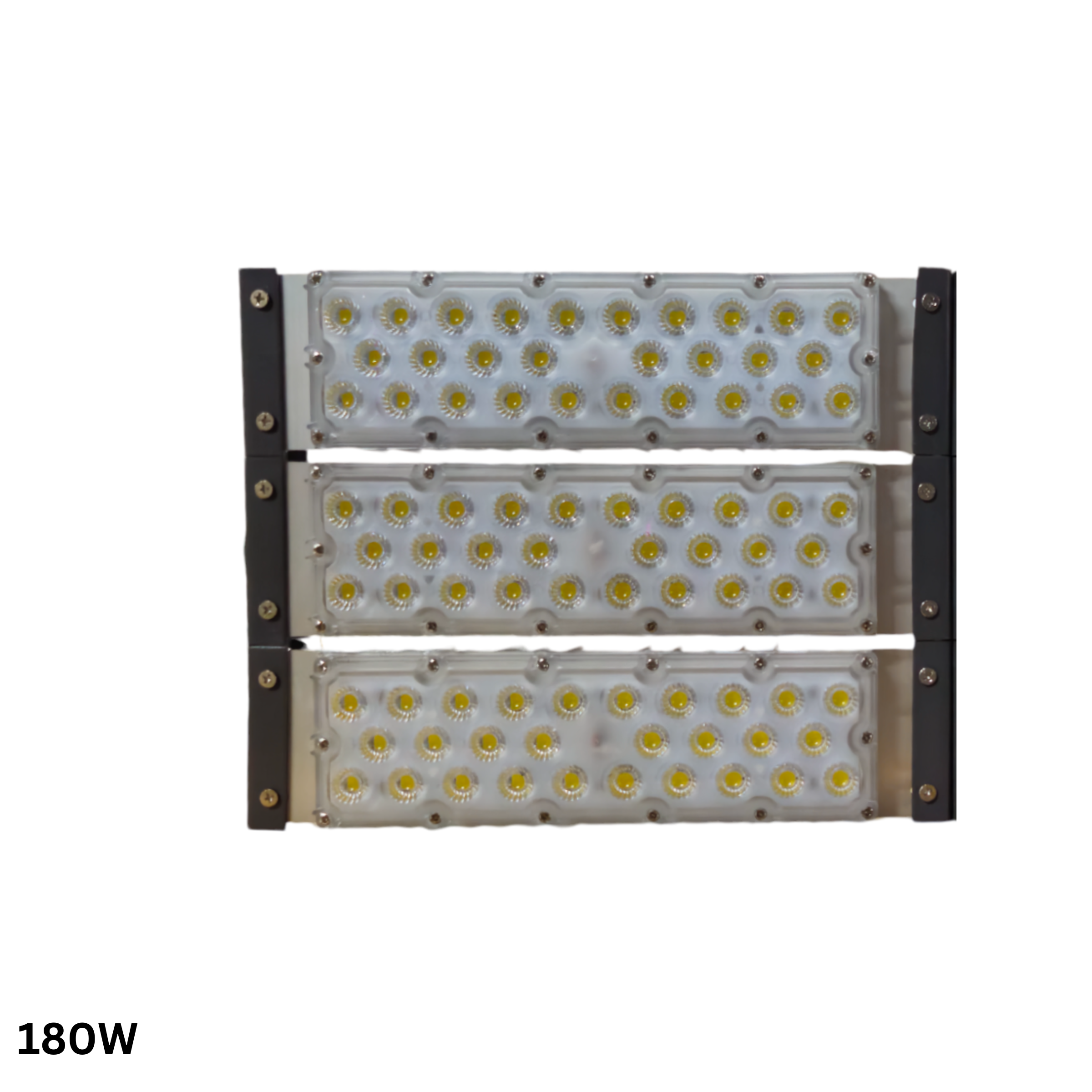

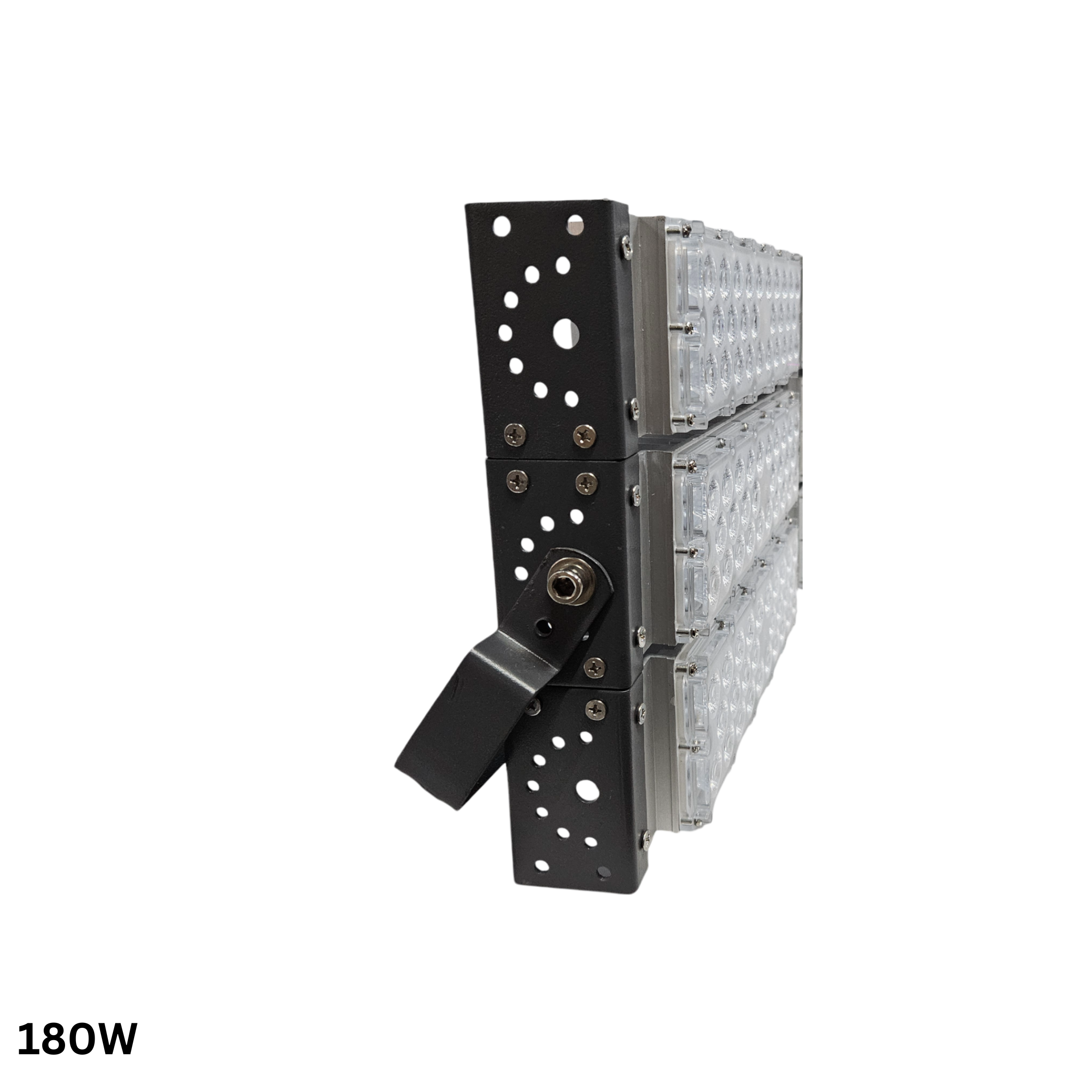

  • 180 W : 30 x 23.4 x 17.5 cm

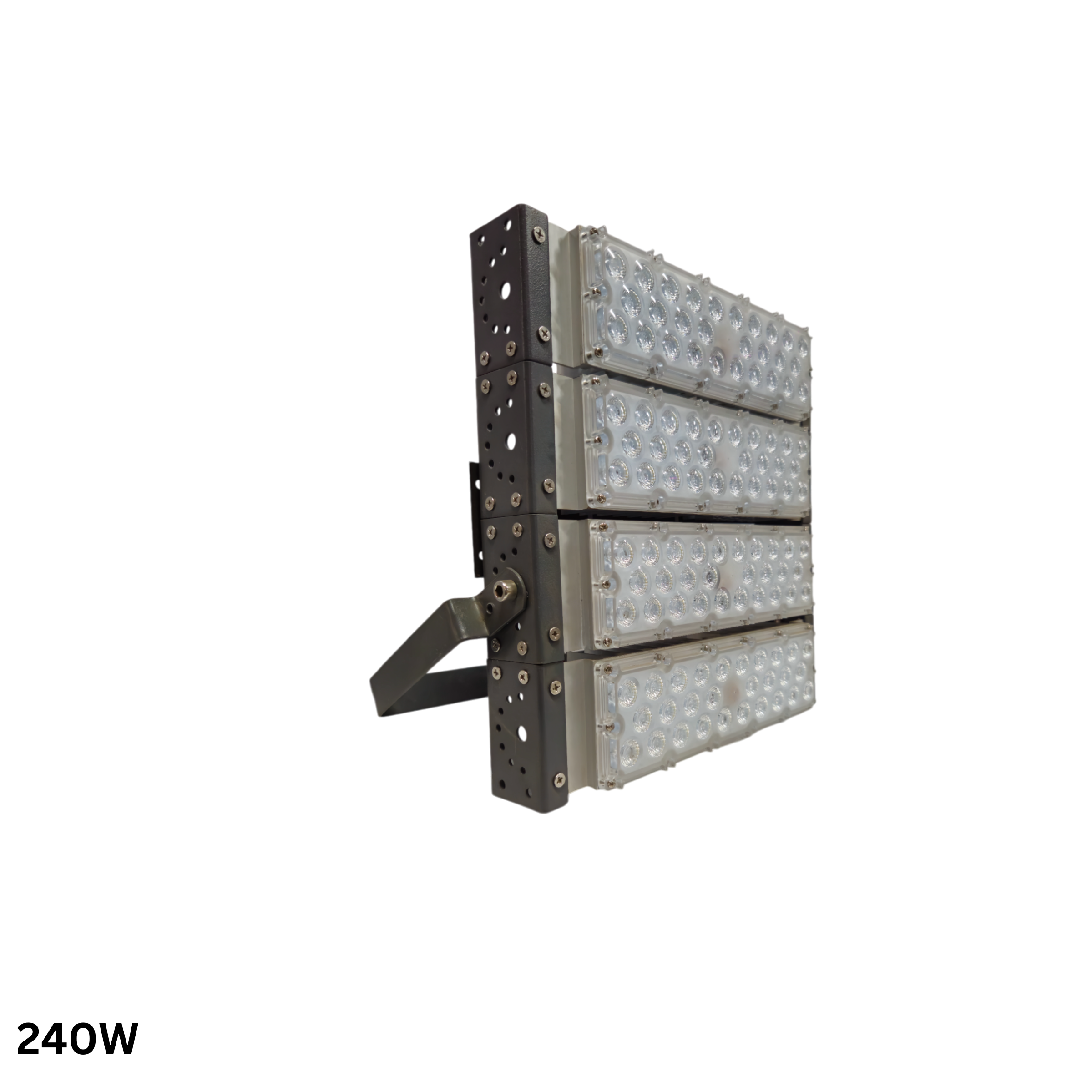

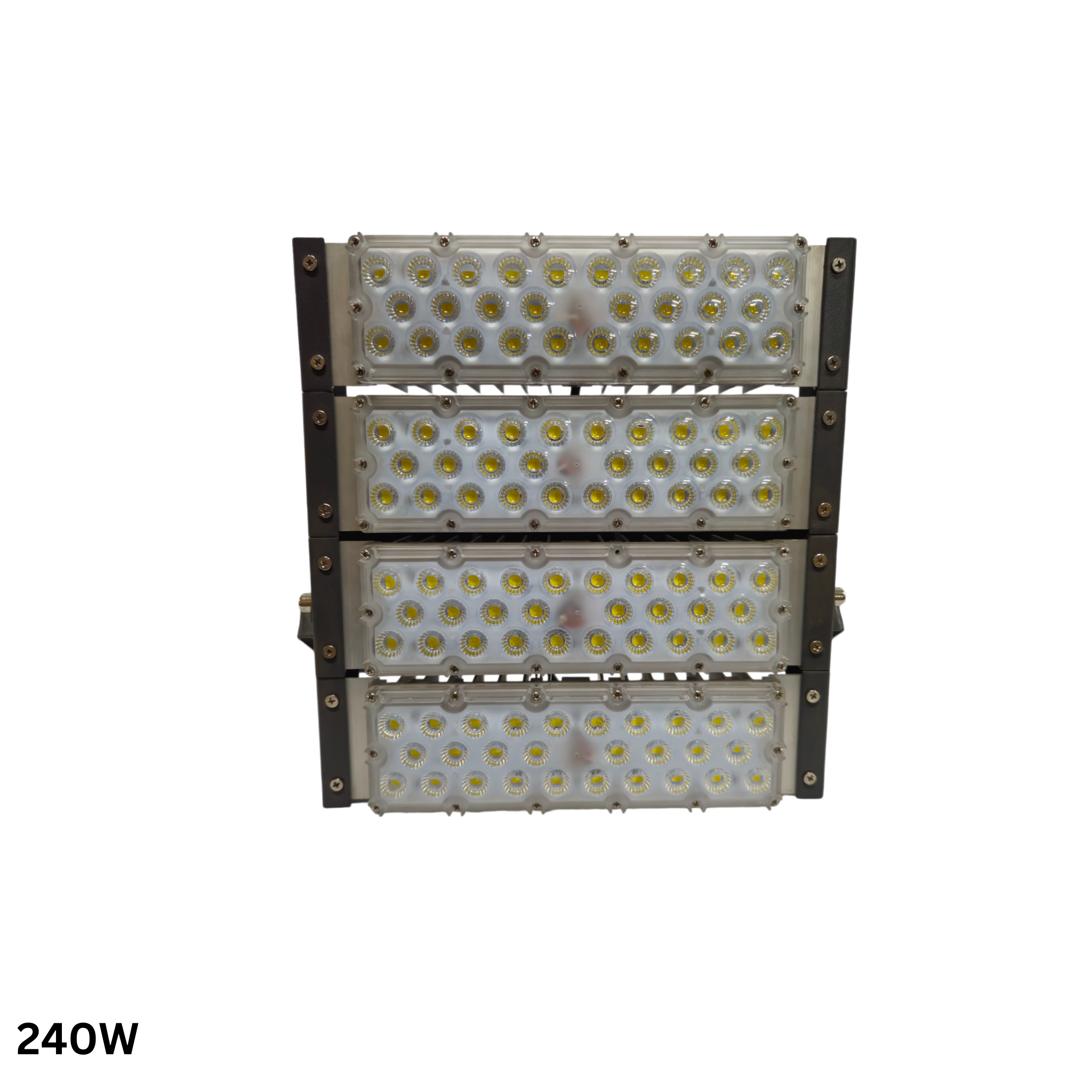

  • 240 W : 60 x 15.6 x 17.5 cm
  • 300 W : 60 x 23.4 x 17.5 cm

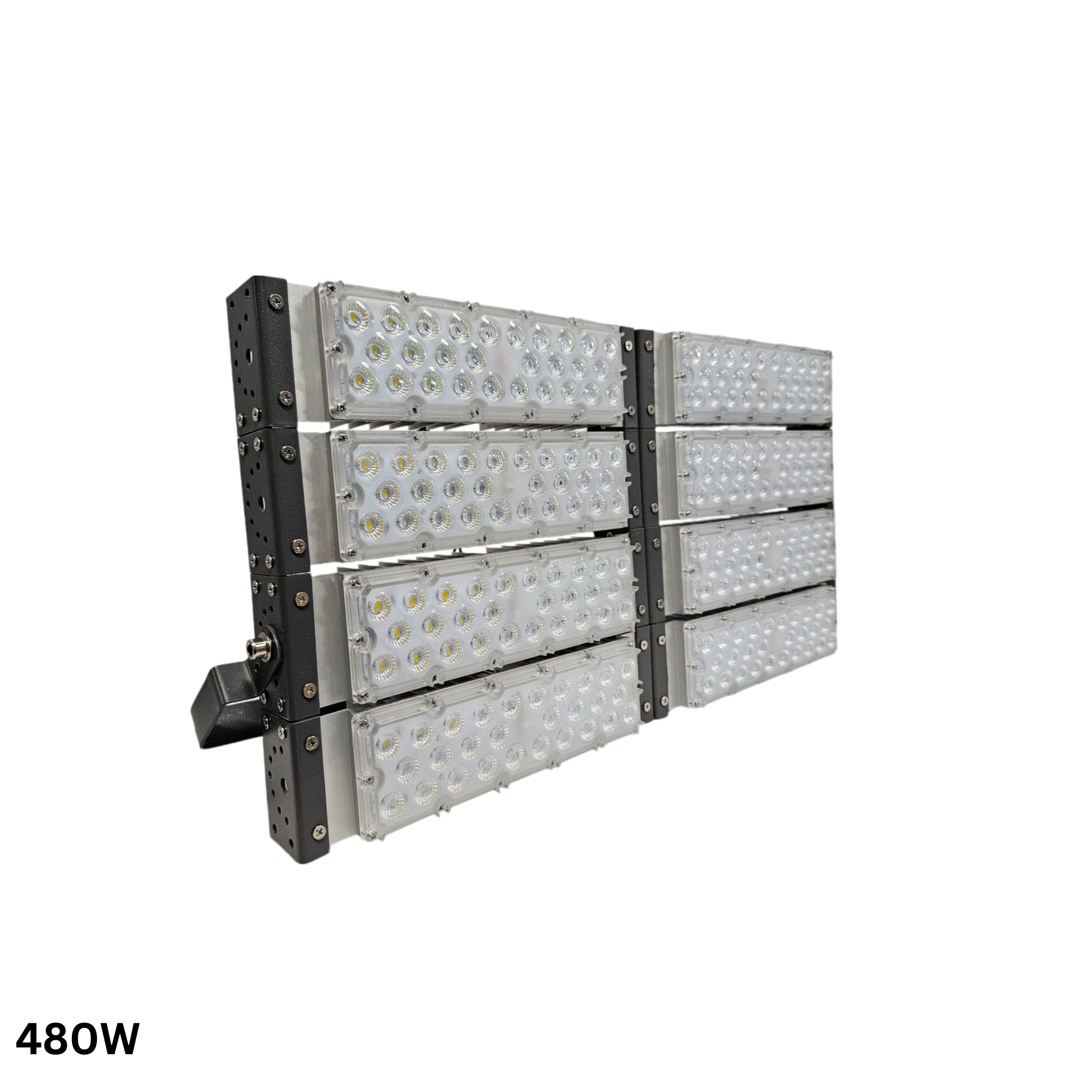

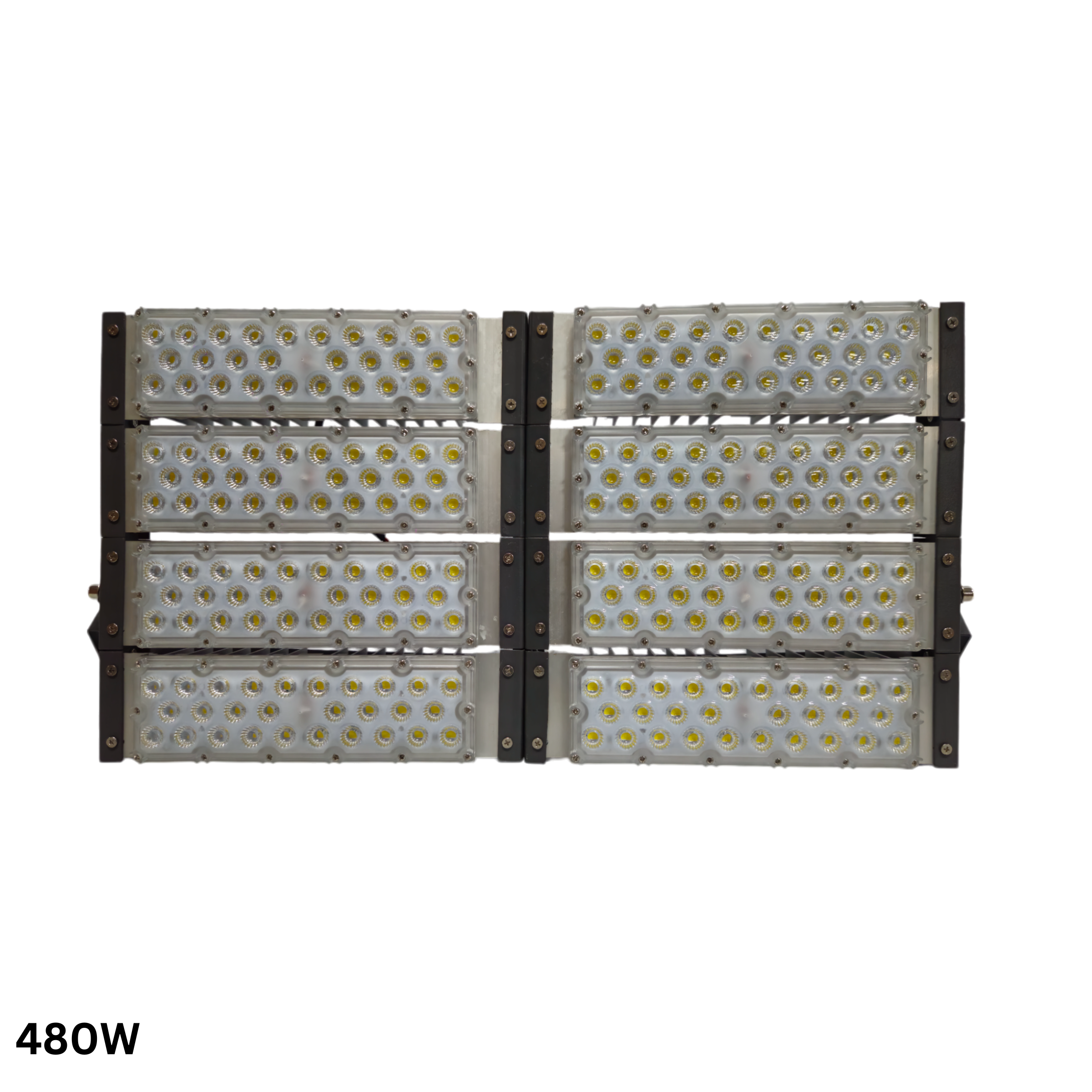

  • 480 W : 60 x 31.2 x 17.7 cm

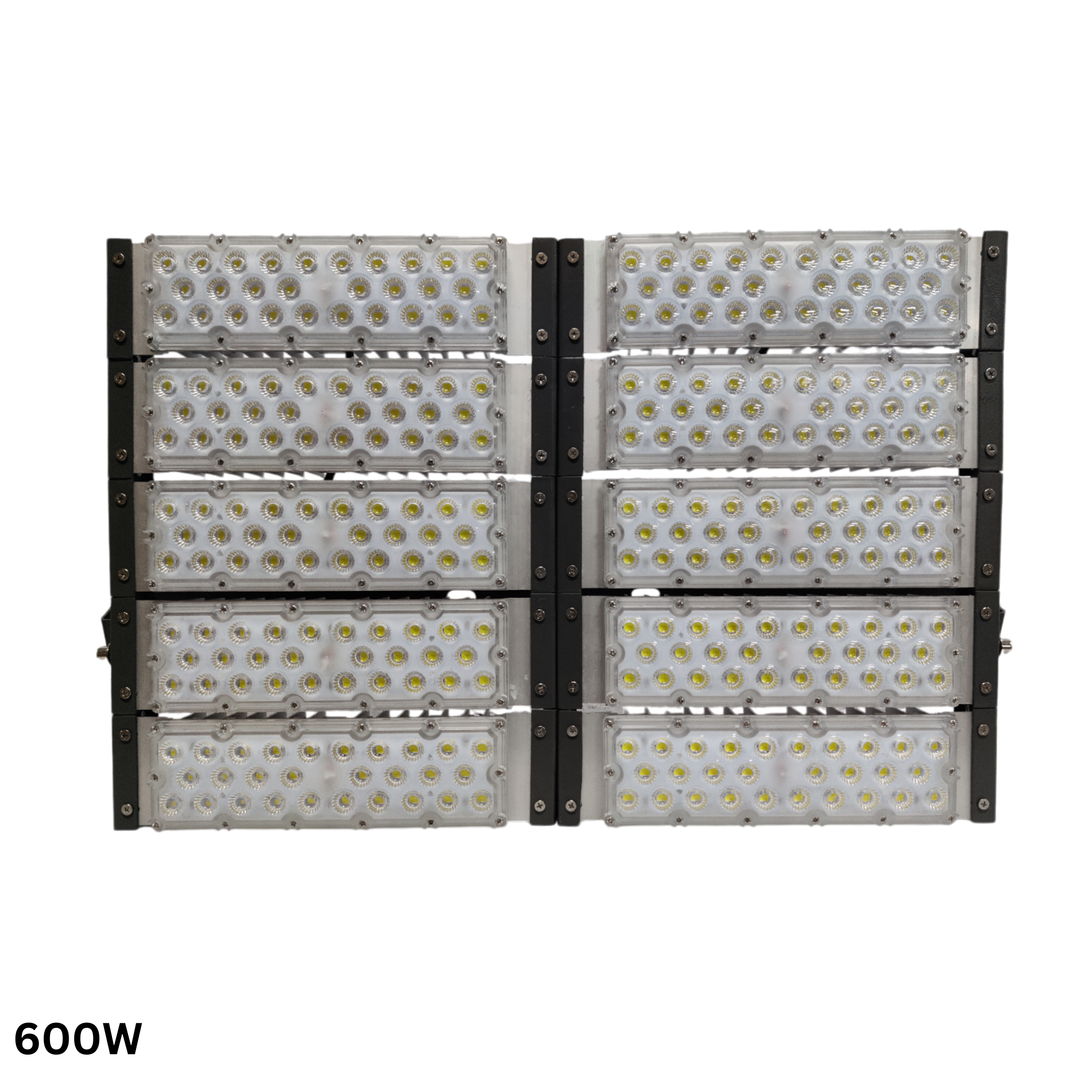

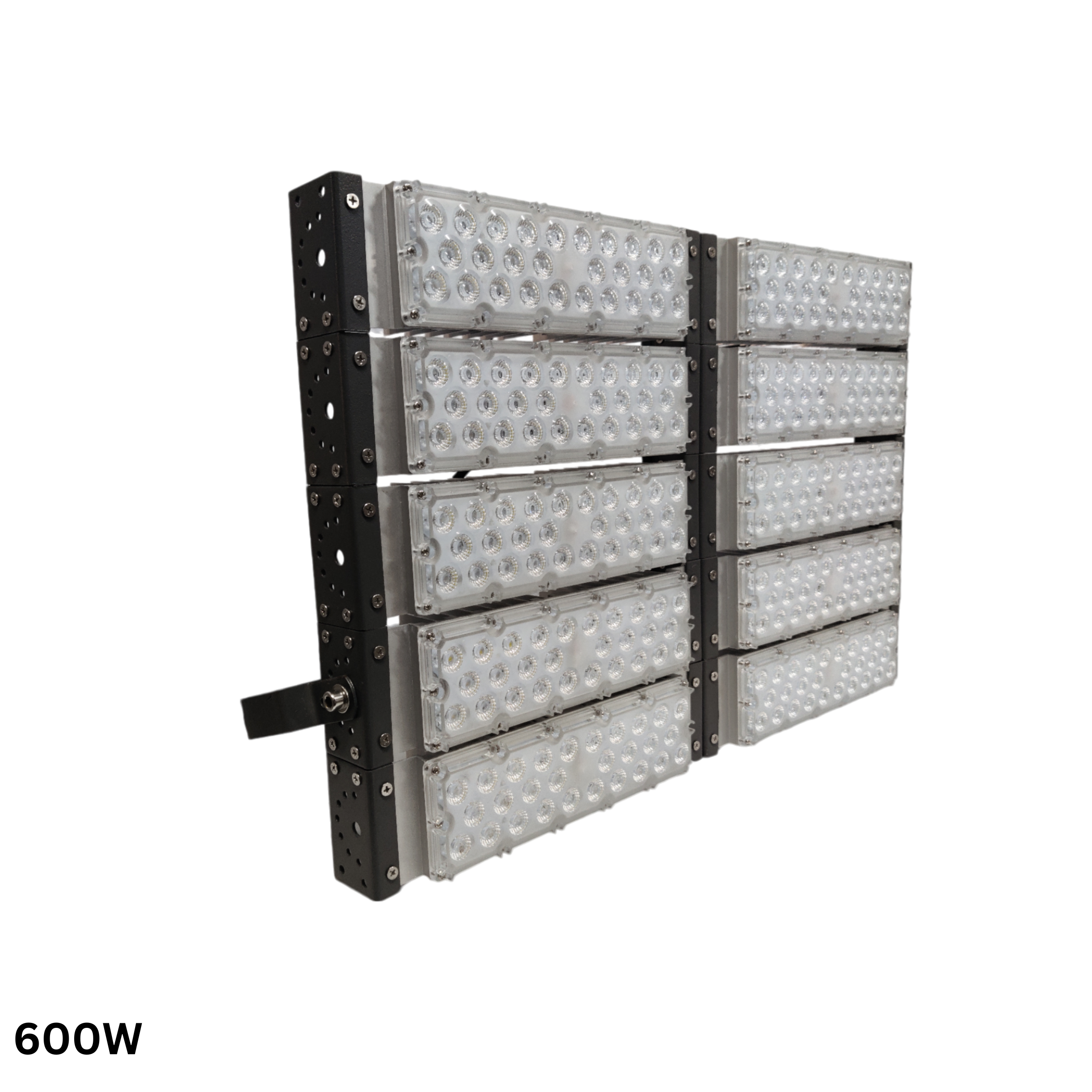

  • 600 W : 60 x 39 x 17.5 cm
