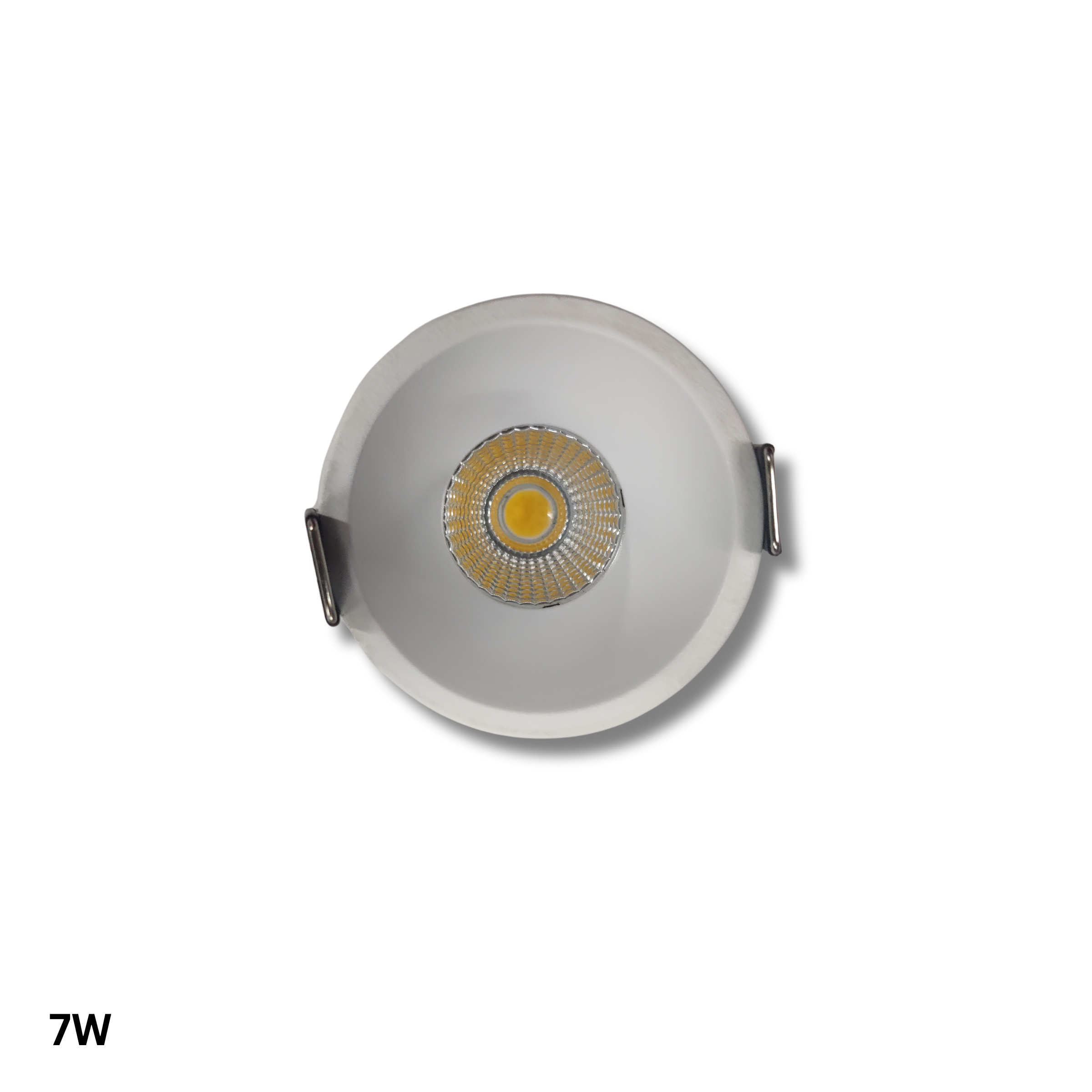

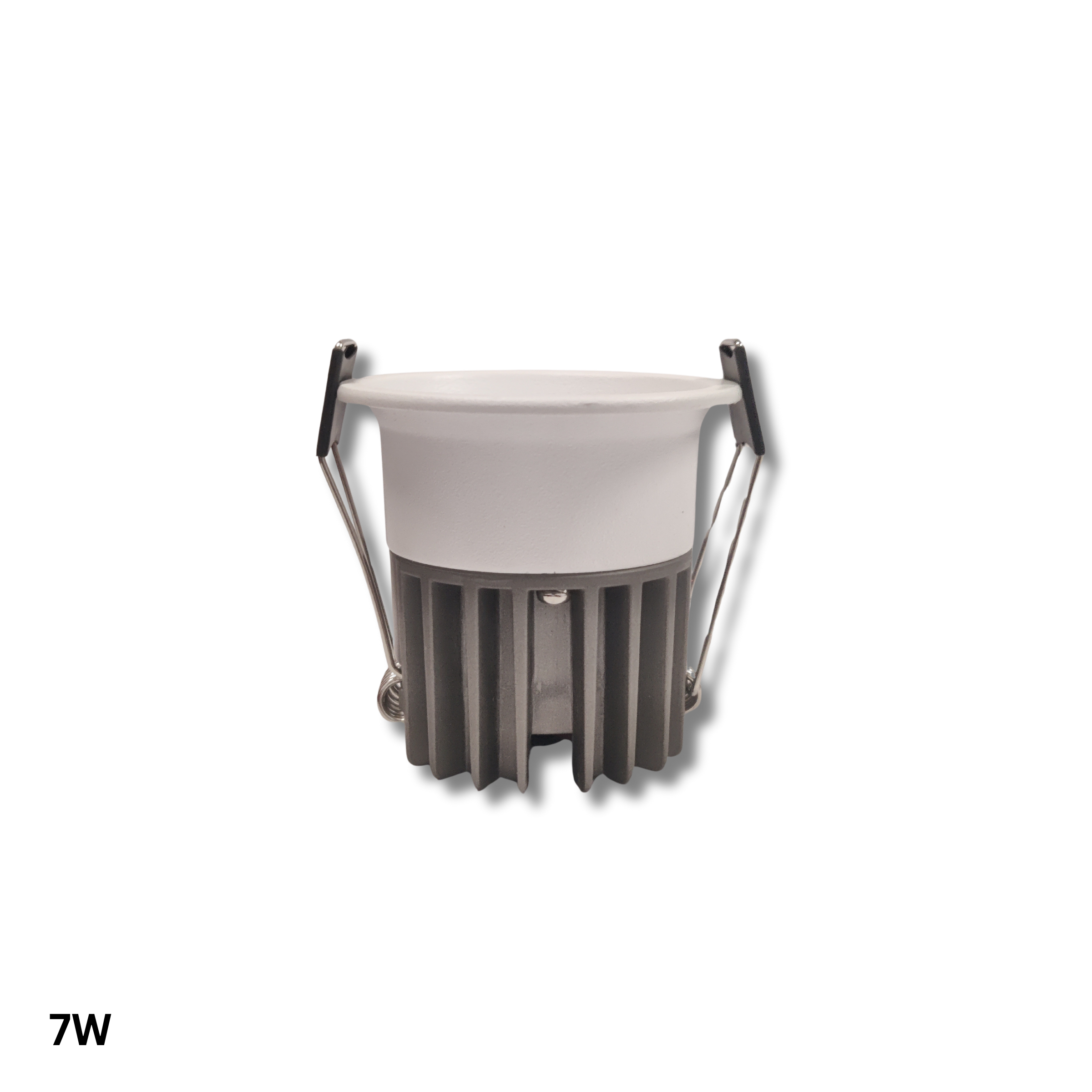

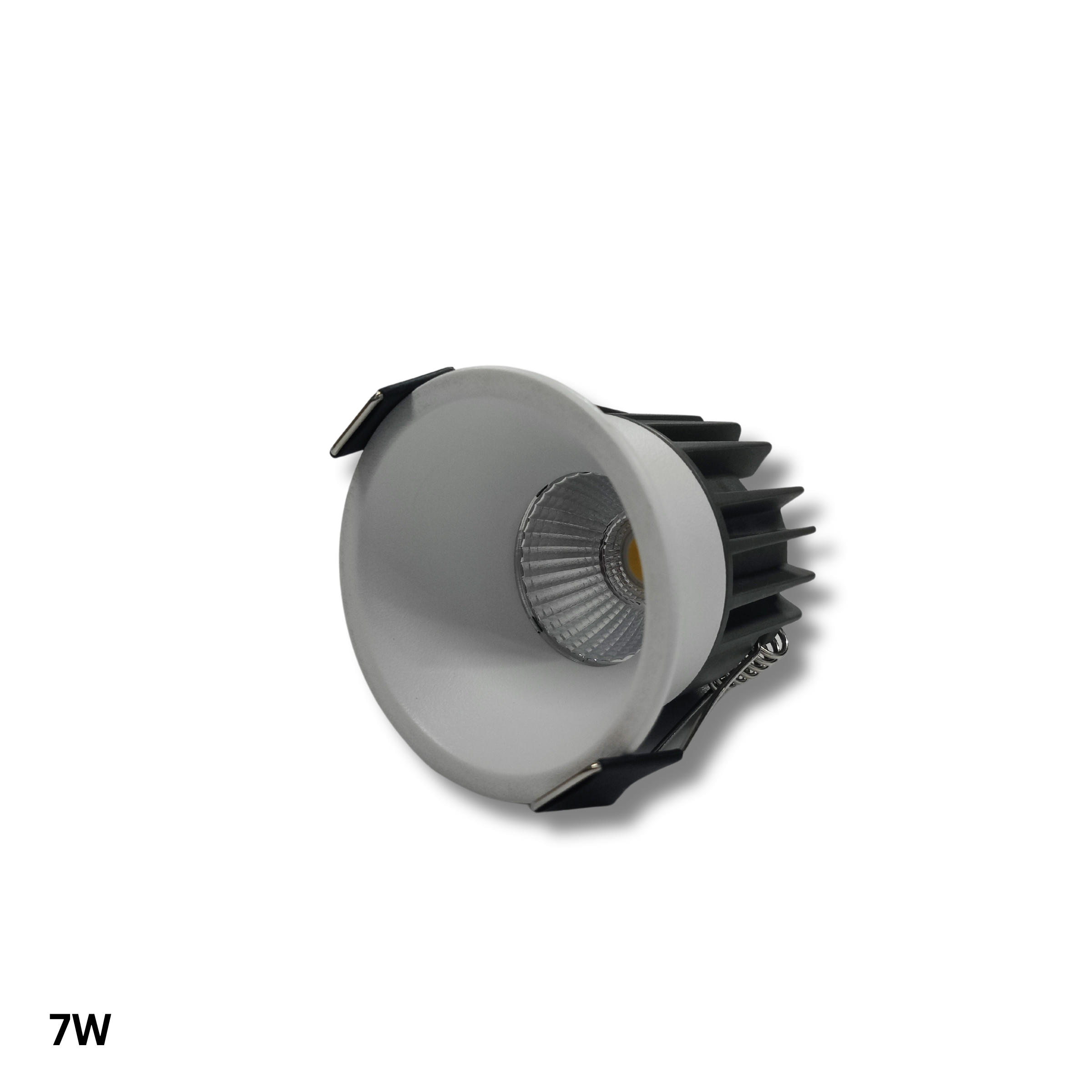

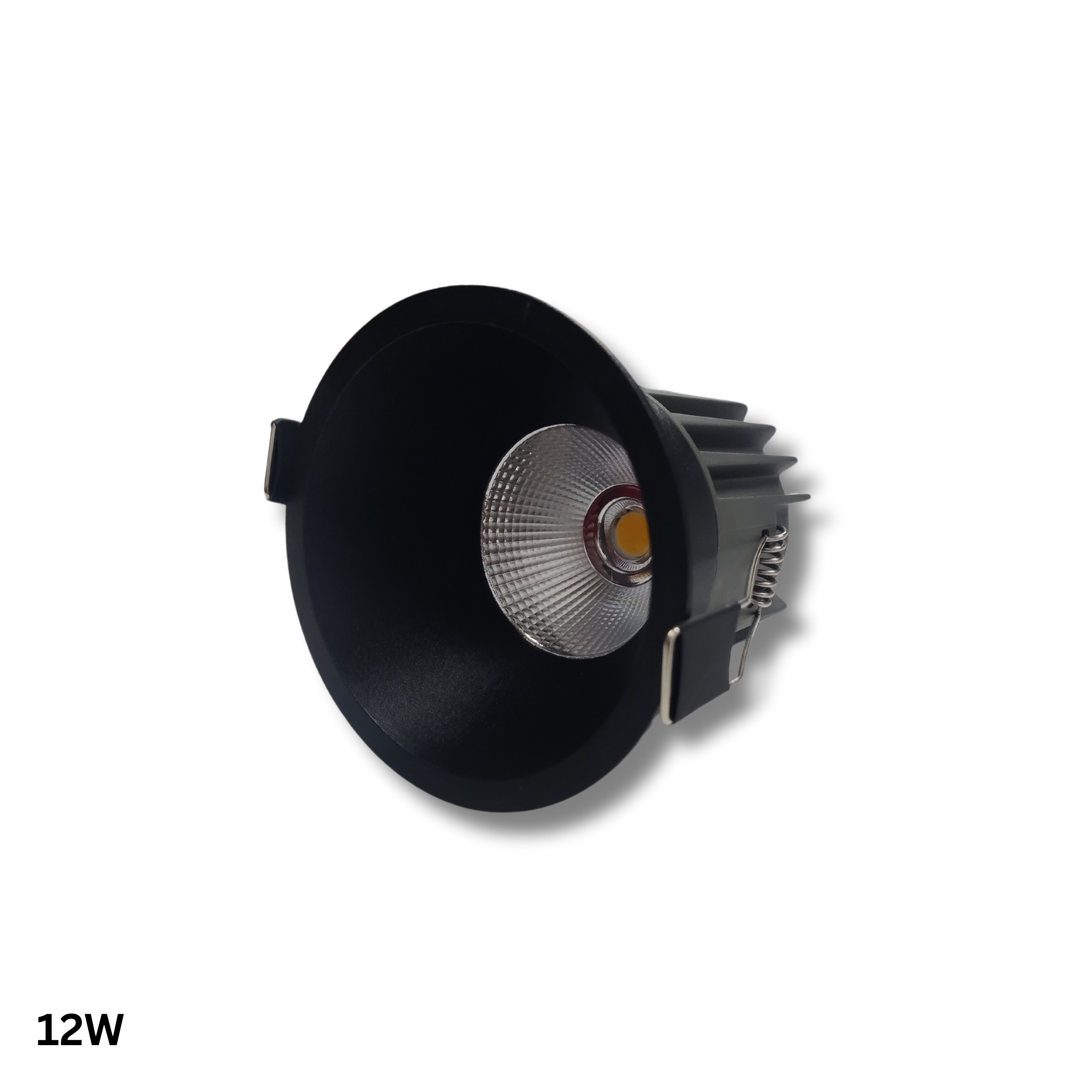

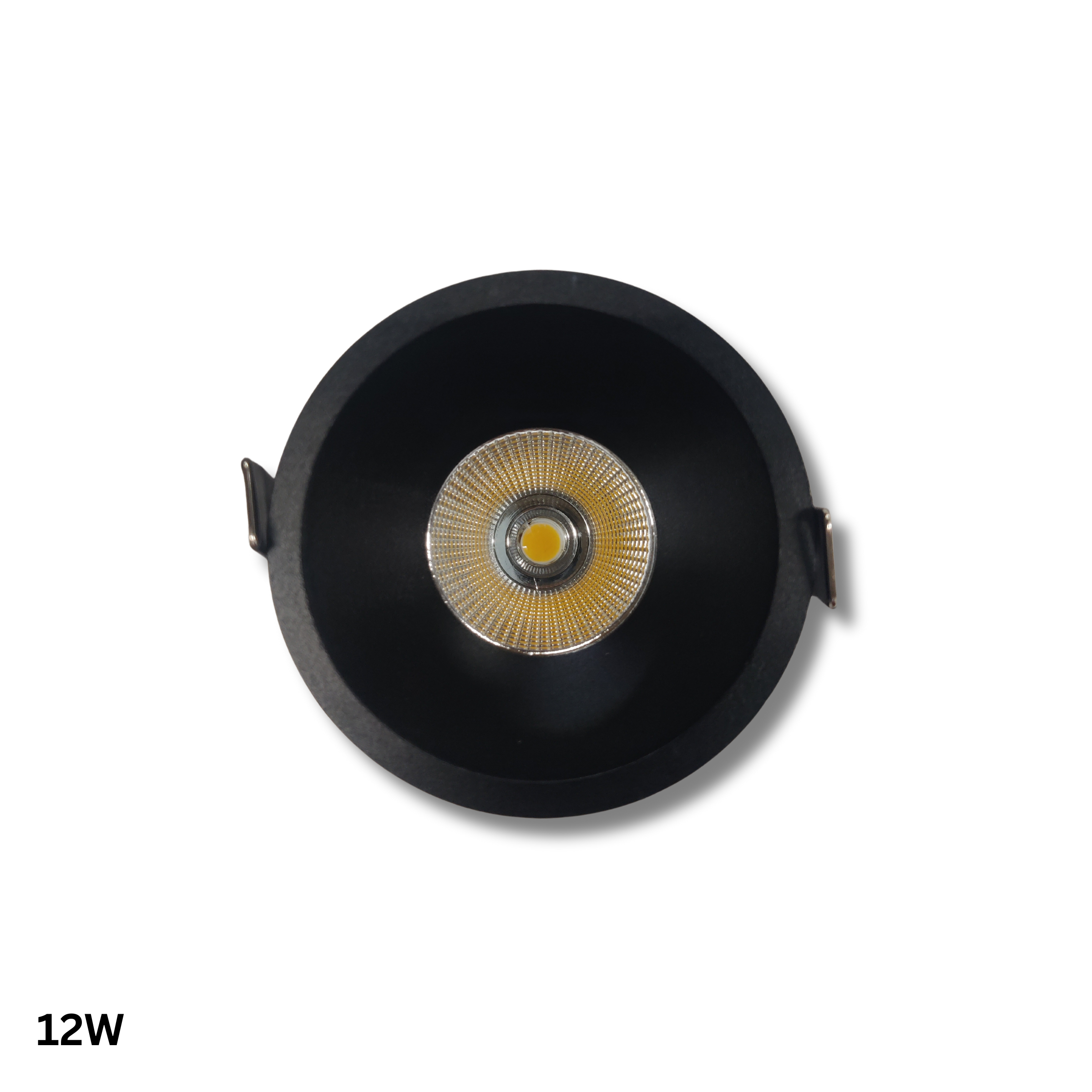

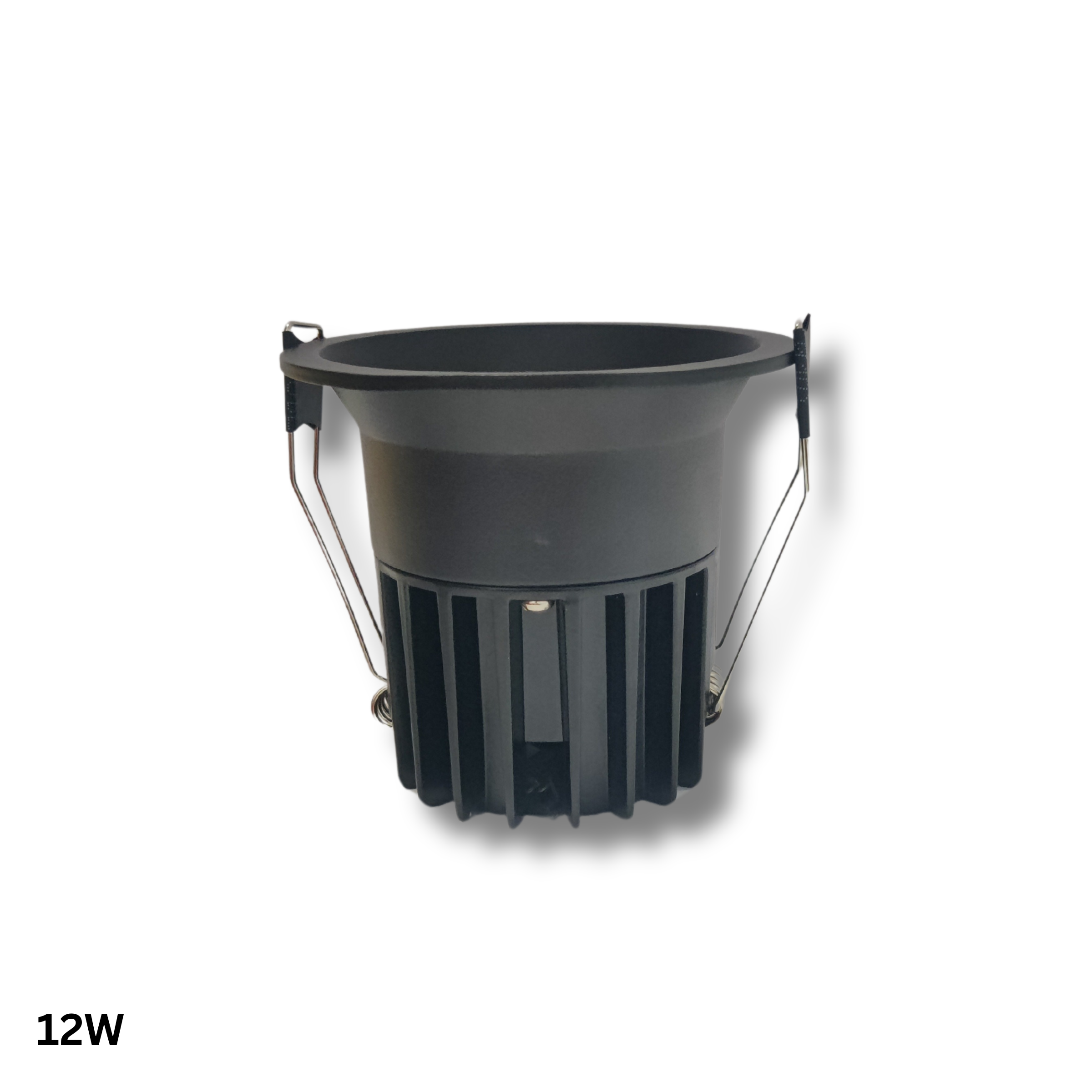

COB Spot Light OI-01

The COB Spot Light OI-01 is a sleek and efficient lighting solution designed for focused illumination. Featuring advanced COB (Chip on Board) LED technology, it delivers bright, uniform light with excellent energy efficiency.

Perfect for accent lighting in homes, retail, or display areas, the OI-01 combines style, performance, and durability for a reliable lighting experience.

Applications


Certification 1

Home

Certification 1

Office

Certification 1

Classroom

Certification 1

Hospital


Certifications


Certification 1
Certification 2
Certification 3
Certification 4
Certification 5
Certification 6

Specifications


  • Light Source :
  • EverBrite COB
  • Power Factor :
  • > 0.95
  • Efficiency :
  • > 88%
  • THD :
  • < 10%
  • Lumen Efficiency :
  • 125-135 Lm/W
  • Surge Protection :
  • 2.5 - 4 KvA
  • CCT :
  • 3000K - 6500K
  • IP Rating :
  • IP 65
  • Housing Body :
  • Aluminium Die-Casting
  • Driver Details :
  • BIS Certified
    Over/Under Voltage Protection
    Over Temperature Protection
    Short Circuit Protection

Dimensions


Watt Dimensions Cutout Size Beam Angle
7 W 5.9 x 6.9 5 24
12 W 8.2 x 7.9 7.4 38
18 W 9.5 x 10.0 8.5 38
