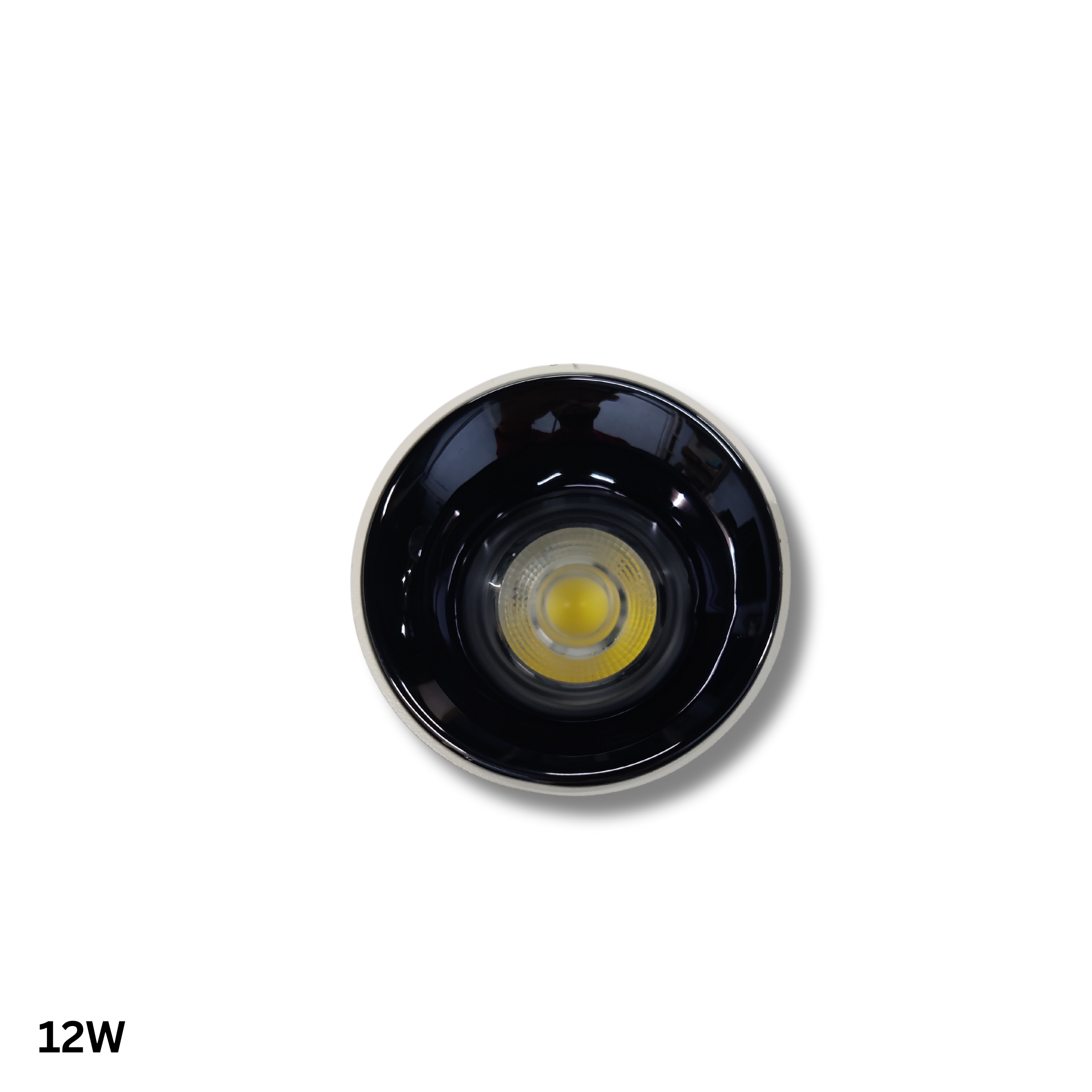

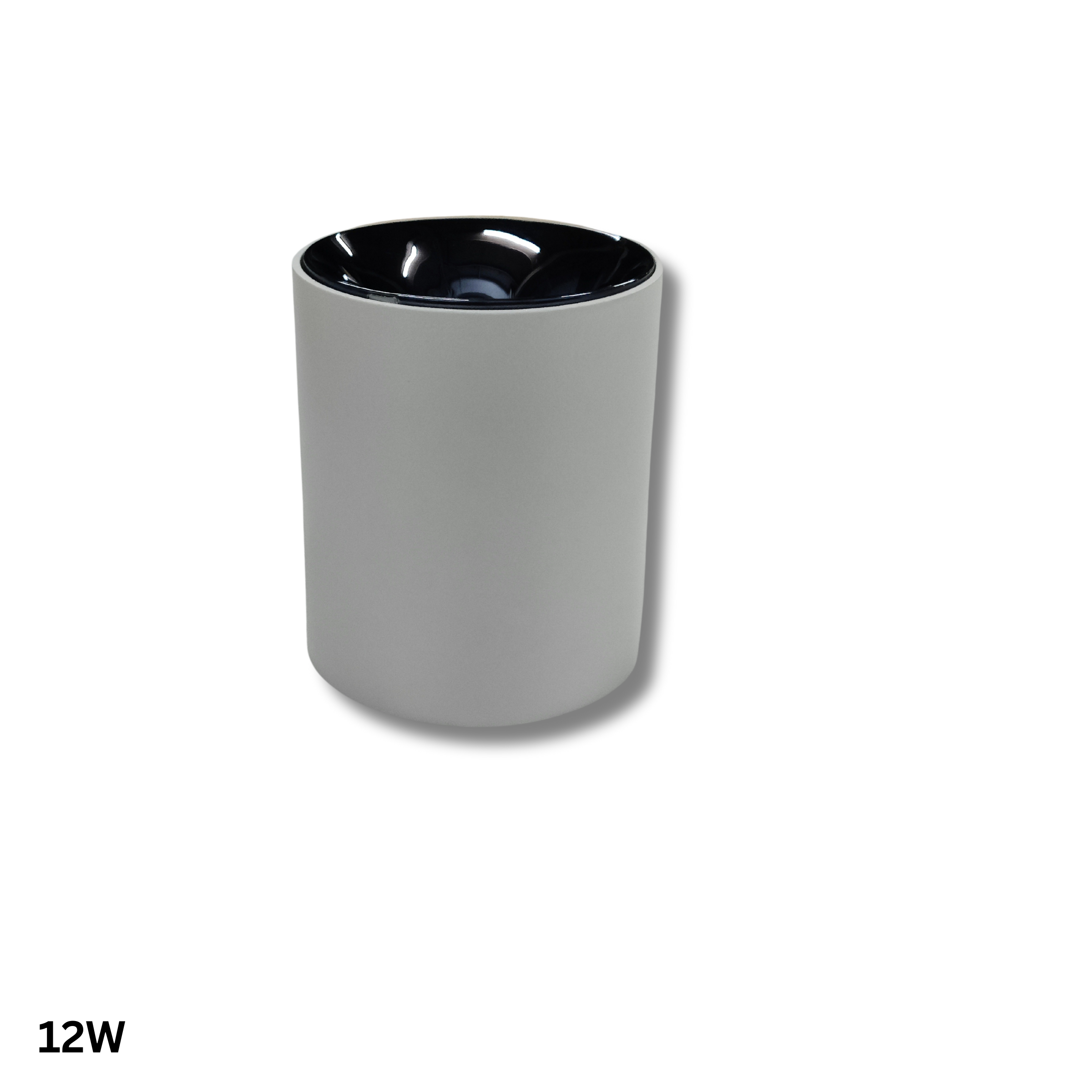

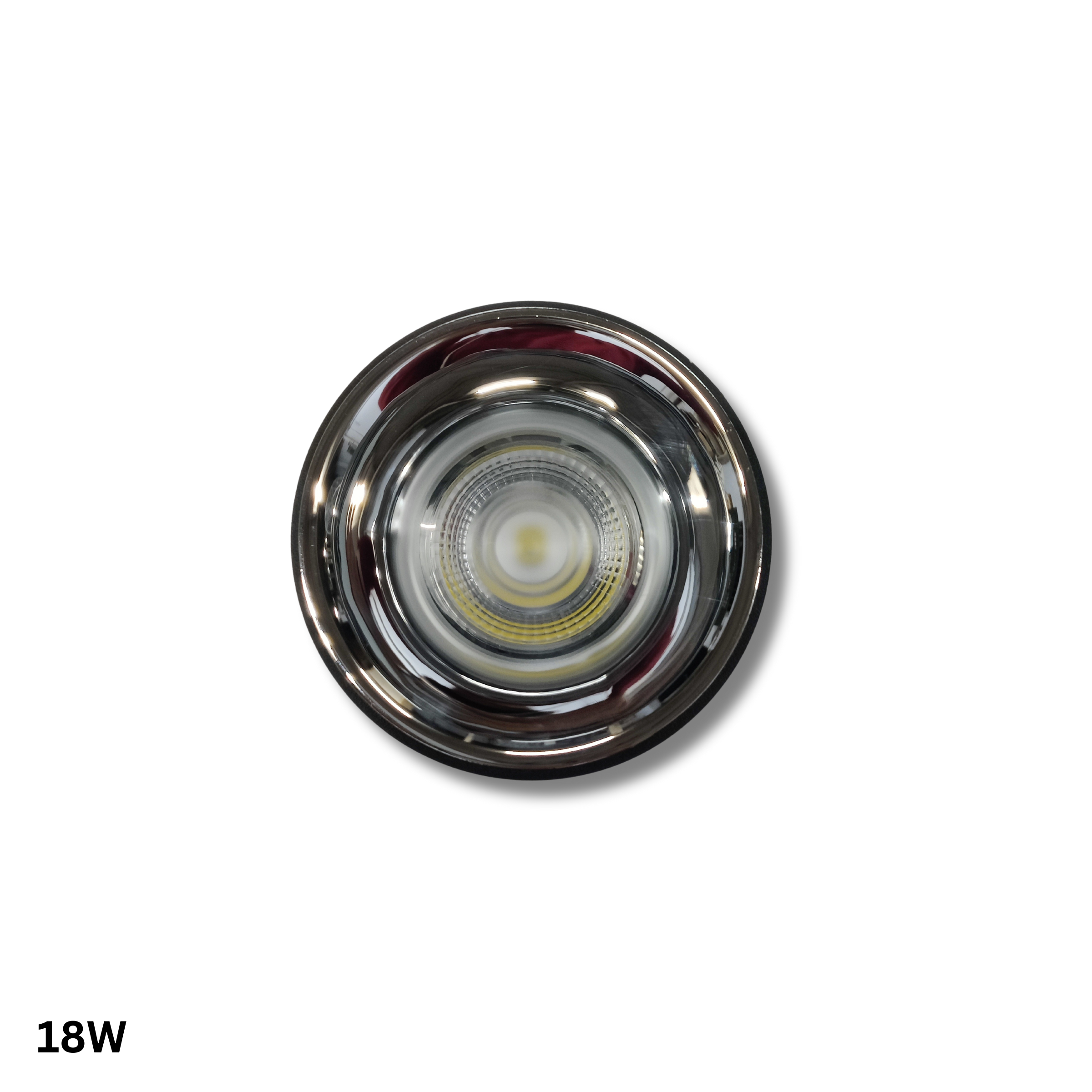

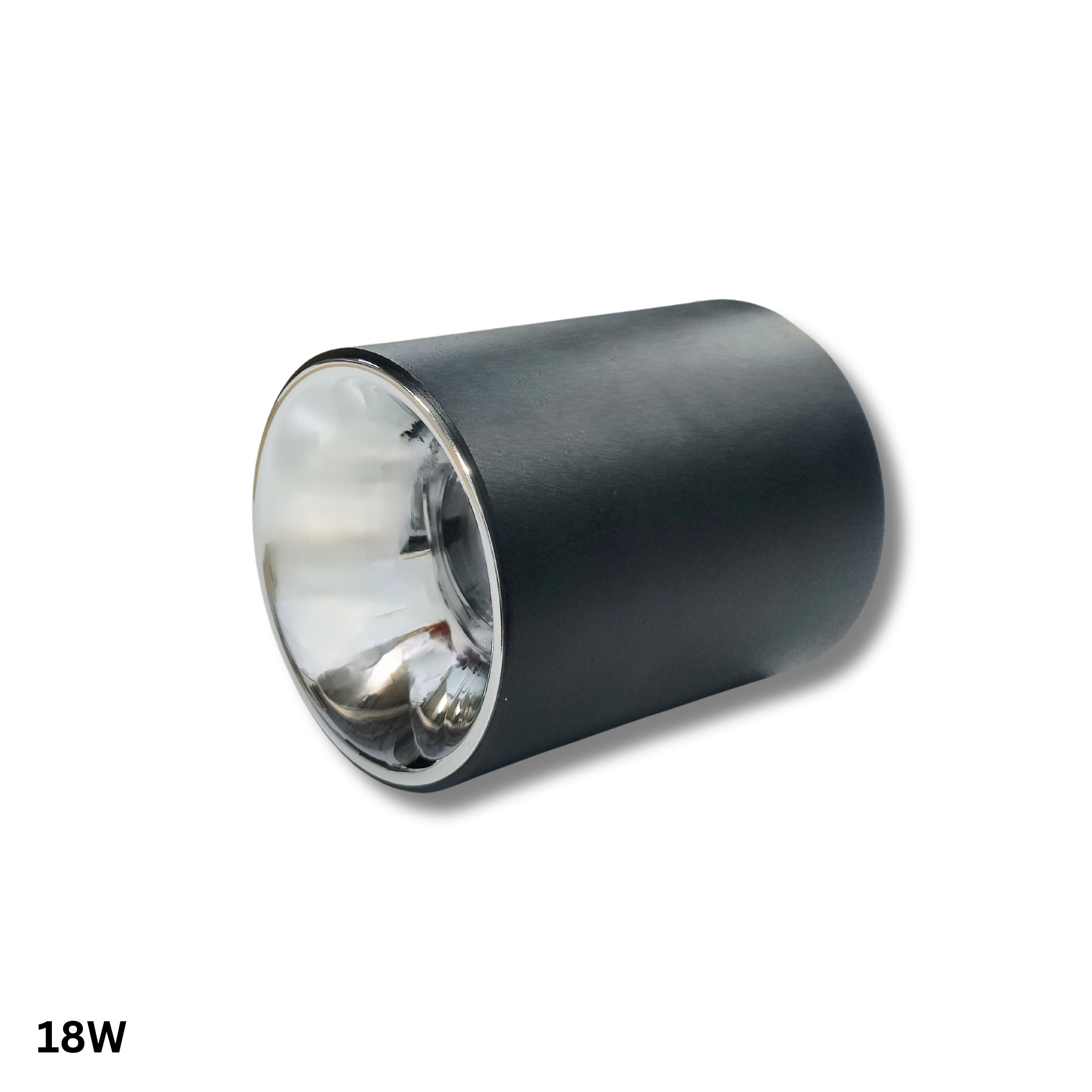

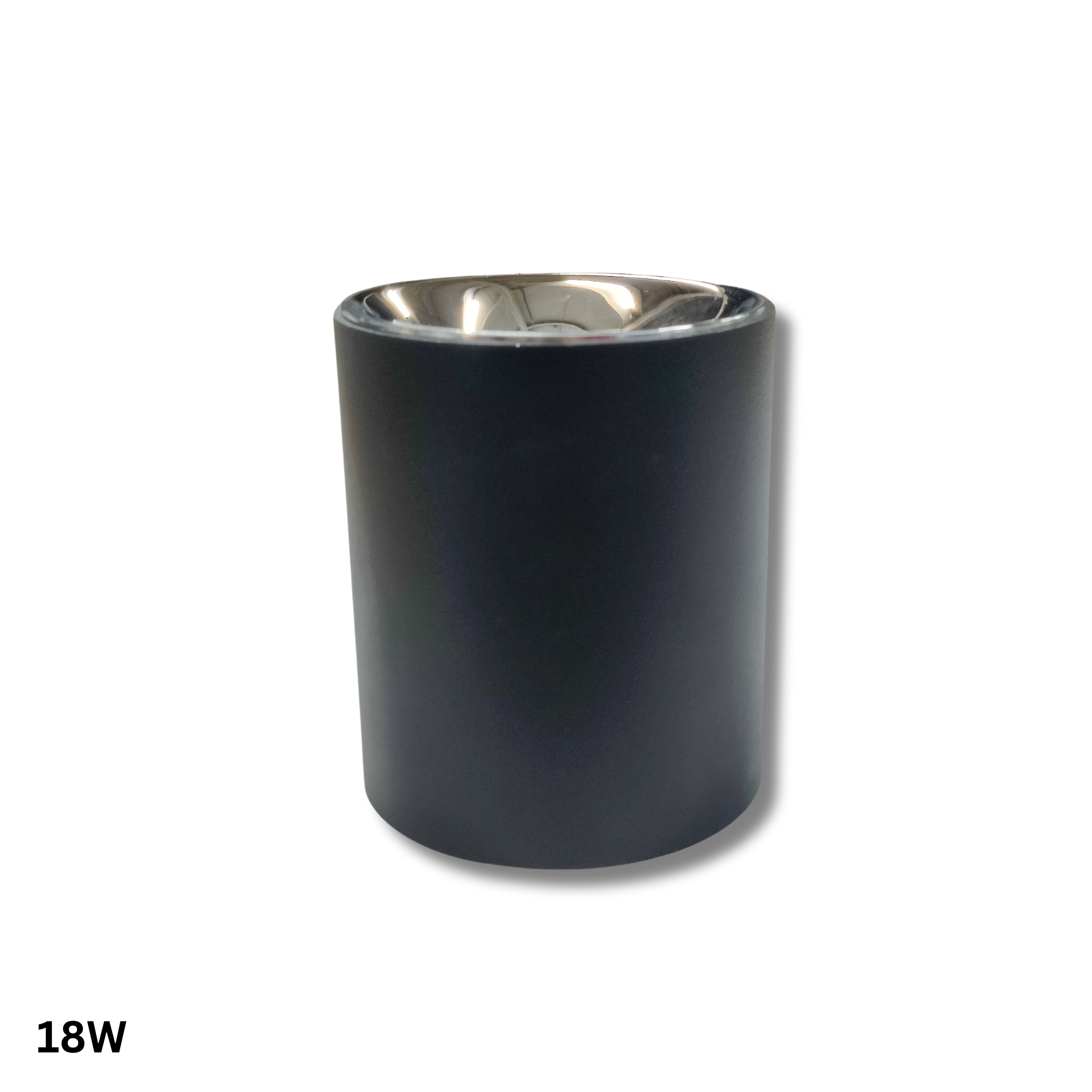

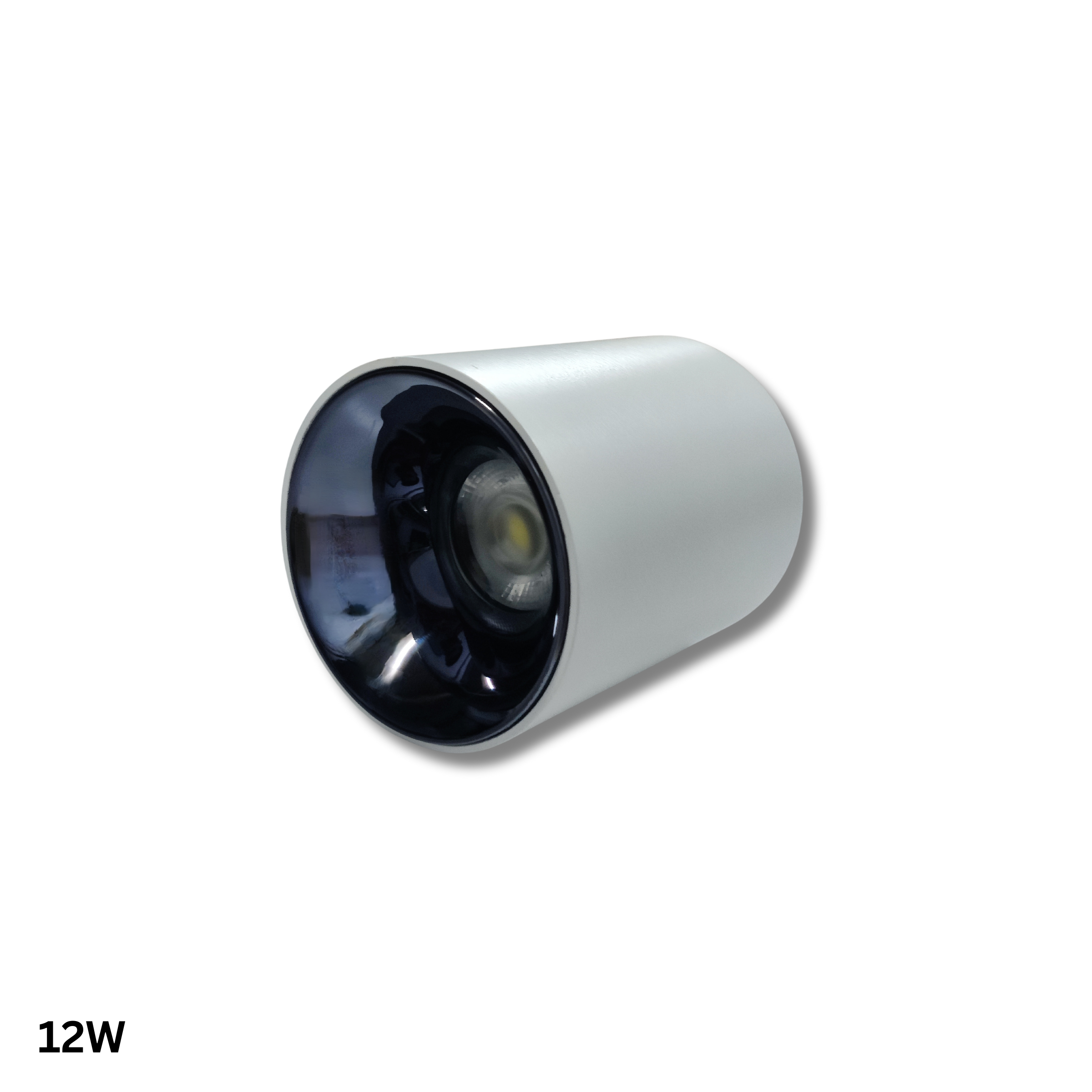

Cylinder COB Spot Light OI-05

The Cylinder COB Spot Light OI-05 is a contemporary and high-performance lighting solution designed for precision and style. Featuring COB (Chip on Board) LED technology, it delivers bright, uniform illumination with excellent energy efficiency.

The cylindrical design adds a modern touch to any space, making it perfect for highlighting artwork, displays, or architectural features. Ideal for commercial, residential, and retail environments, the OI-05 combines sleek aesthetics with durability and long-lasting performance, offering both functionality and visual appeal.

Applications


Certification 1

Home

Certification 1

Office

Certification 1

Classroom

Certification 1

Hospital


Certifications


Certification 1
Certification 2
Certification 3
Certification 4
Certification 5
Certification 6

Specifications


  • Light Source :
  • EverBrite COB
  • Power Factor :
  • > 0.95
  • Efficiency :
  • > 88%
  • THD :
  • < 10%
  • Lumen Efficiency :
  • 125-135 Lm/W
  • Surge Protection :
  • 2.5 - 4 KvA
  • CCT :
  • 3000K - 6500K
  • IP Rating :
  • IP 65
  • Housing Body :
  • Aluminium Die-Casting & Aluminium Reflector
  • Driver Details :
  • BIS Certified
    Over/Under Voltage Protection
    Over Temperature Protection
    Short Circuit Protection

Dimensions


Watt Dimensions Beam Angle
6 W 6.0 x 7.5 / 8.0 24
12 W 7.0 x 8.5 / 9.0 36
18 W 8.5 x 10.0 36
