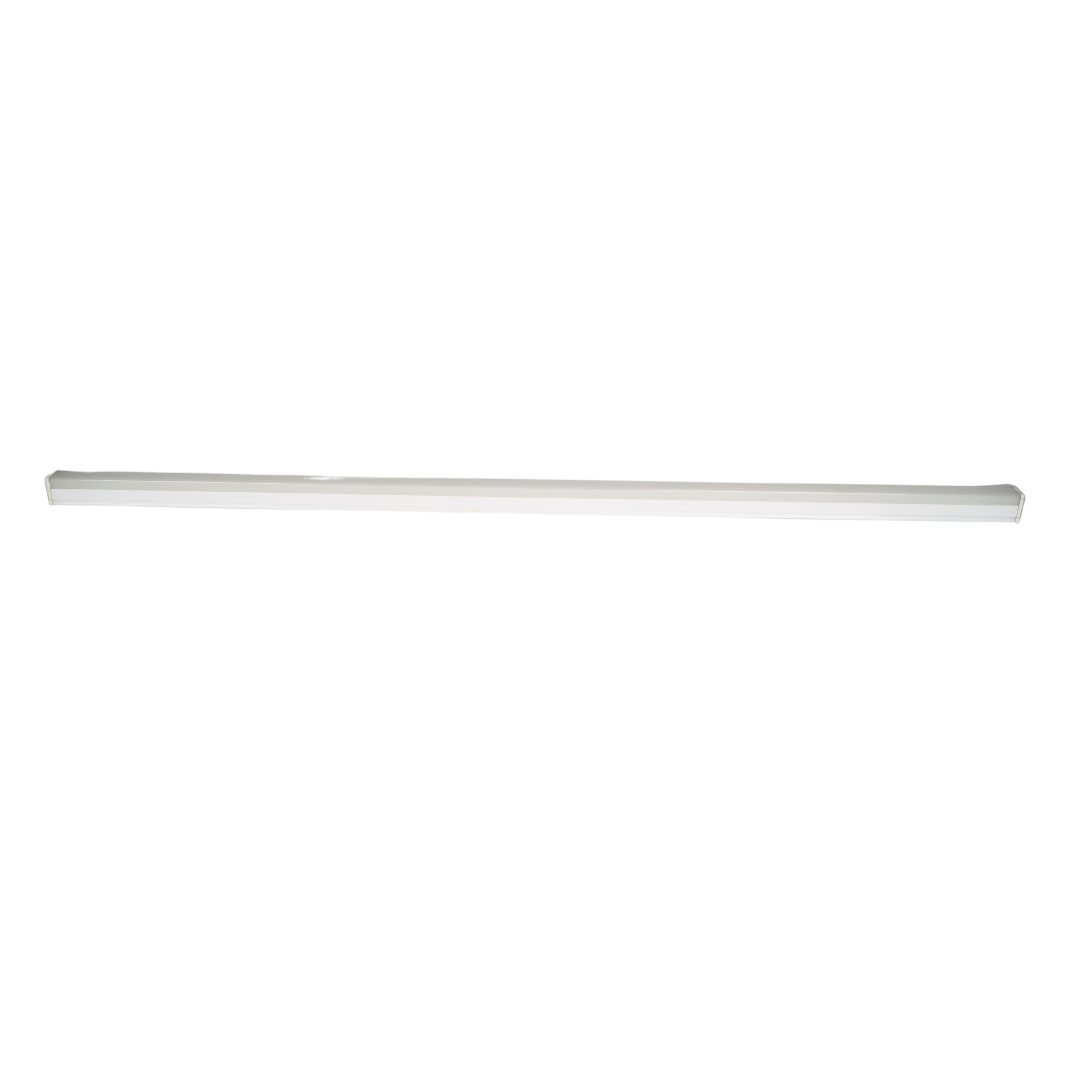

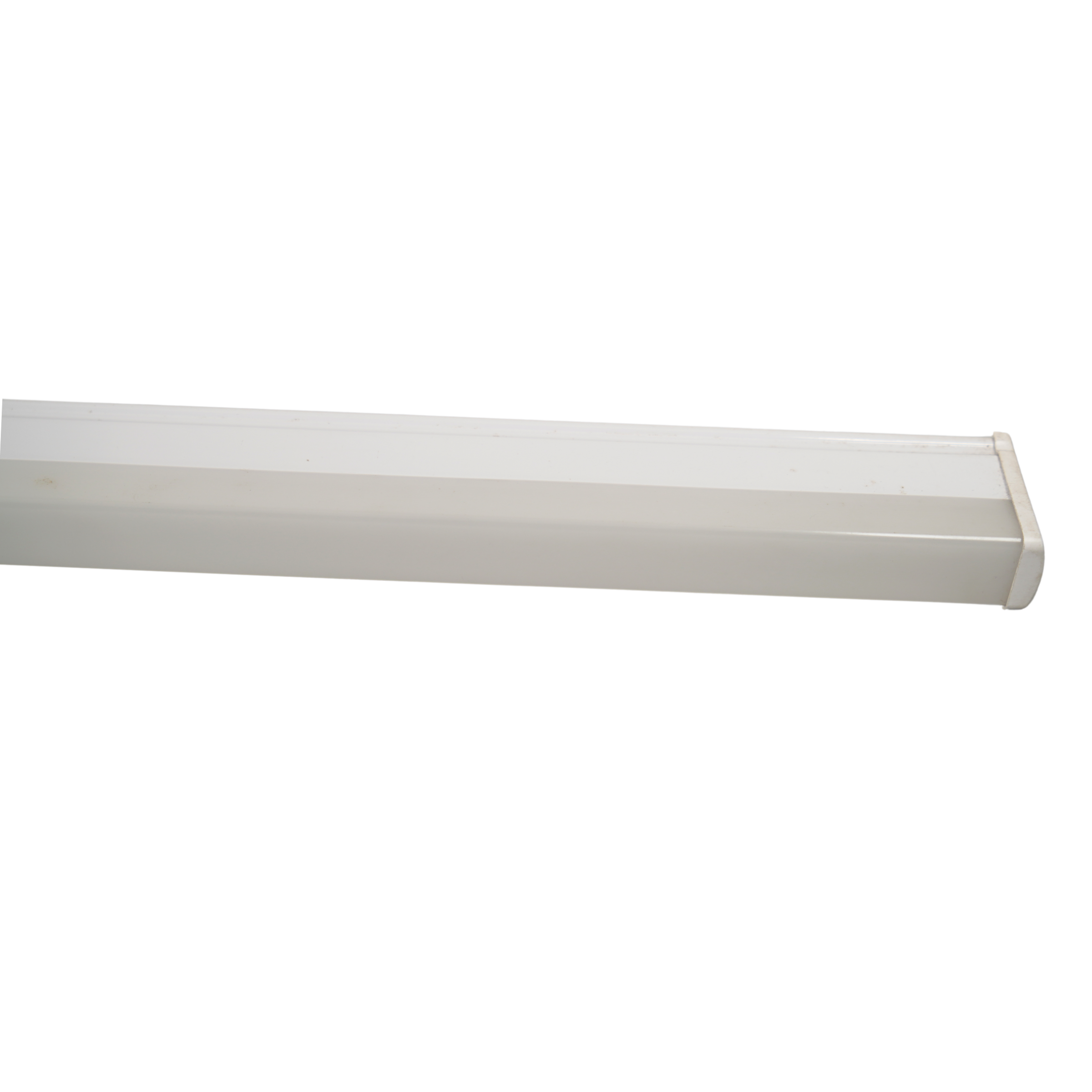

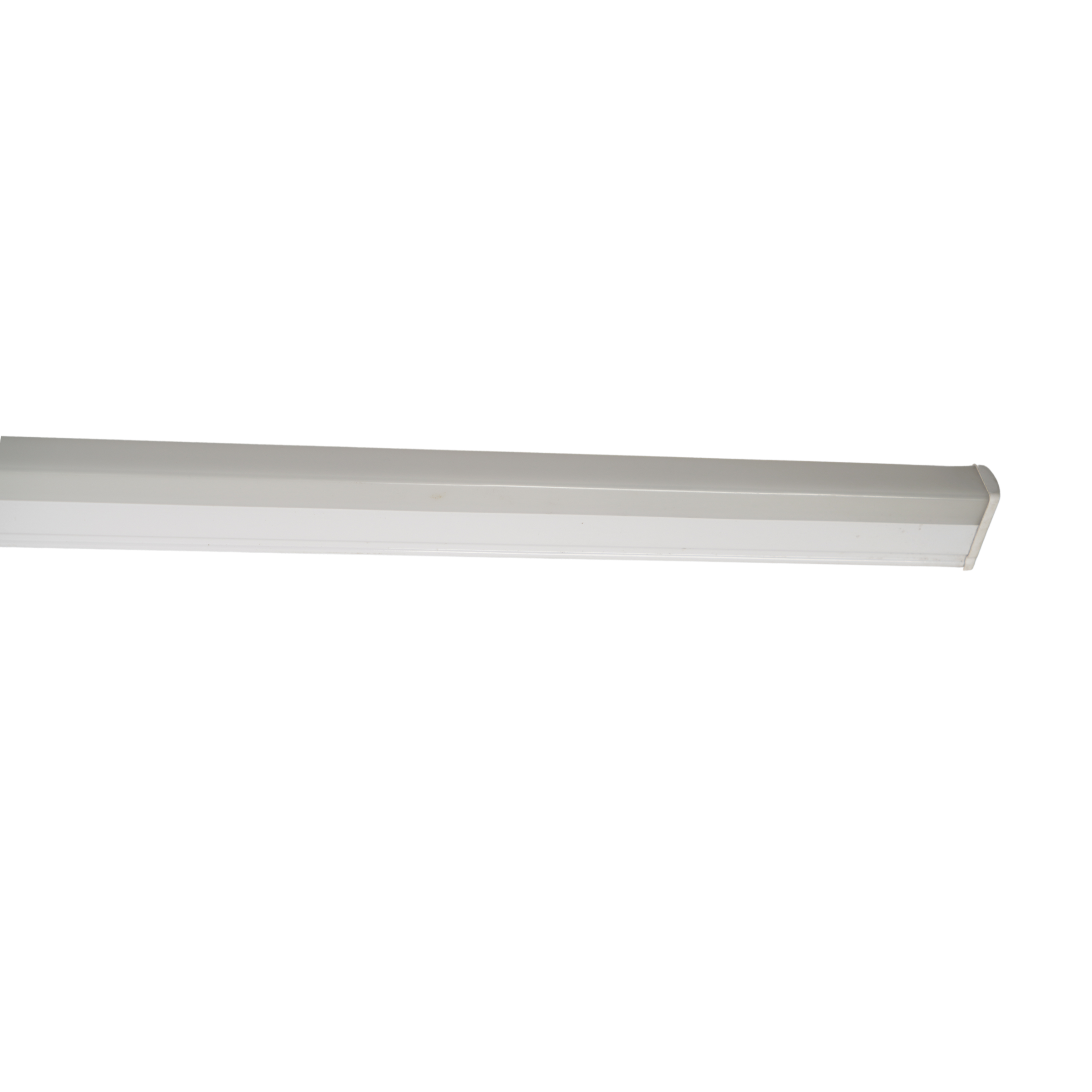

LED Tubelight Batten

Elevate your lighting solutions with the LED Tube Light Batten, a versatile and energy-efficient choice for residential, commercial, and industrial applications.
This sleek and robust fixture offers uniform illumination with advanced LED technology, delivering bright and flicker-free light.

Ideal for replacing traditional fluorescent tube lights, the LED Tube Light Batten reduces energy consumption while providing long-lasting performance. Easy to install and maintain, it features a durable housing that ensures reliability in various environments. Upgrade your lighting infrastructure with the LED Tube Light Batten, combining durability, efficiency, and superior illumination for every space.

Applications


Certification 1

Home

Certification 1

Office

Certification 1

Classroom

Certification 1

Hospital


Certifications


Certification 1
Certification 2
Certification 3
Certification 4
Certification 5
Certification 6

Specifications


  • Light Source :
  • SMD LED 2835 0.2W (LM 80)
  • Power Factor :
  • > 0.95
  • Efficiency :
  • > 88%
  • THD :
  • < 15%
  • Lumen Efficiency :
  • 120 - 130 Lm/W
  • Surge Protection :
  • 2.5 KvA
  • CCT :
  • 2700K - 6500K
  • Driver Type :
  • Non - Isolated
  • IP Rating :
  • IP 20
  • Housing Body :
  • Aluminium + PC Diffuser
  • Protections :
  • Over Voltage Protection
    Over Temperature Protection
    Short Circuit Protection

Dimensions


  • 18-20W :
  • 118 x 2.20 x 3.25 cm
