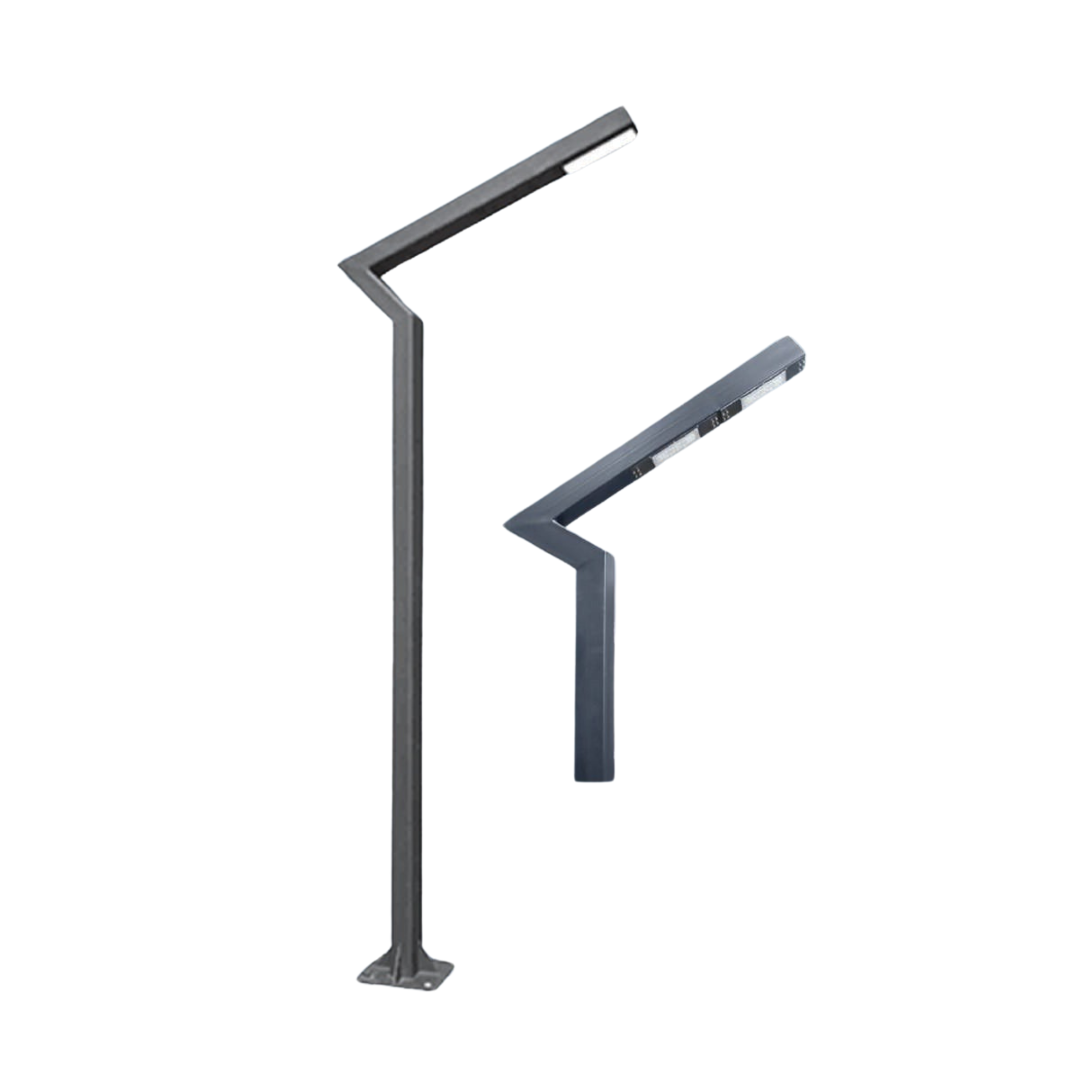

Z-Pole with LED Module

Revolutionize your outdoor lighting with the Z-Pole with LED Module, a versatile and efficient solution for modern illumination needs. This state-of-the-art lighting pole combines sleek design with cutting-edge LED technology to provide bright, uniform light coverage for streets, parks, parking lots, and more.

Engineered for durability and energy efficiency, the Z-Pole with LED Module is the perfect choice for enhancing safety and aesthetics in any outdoor space.

CLICK TO ENQUIRE

Applications


Certification 1

Garden Lighting

Certification 1

Path Highlighting

Certification 1

Beautification


Certifications


Certification 1
Certification 2
Certification 3
Certification 4
Certification 5
Certification 6

Specifications


  • Light Source :
  • COB LED
  • Power Factor :
  • > 0.95
  • THD :
  • < 10%
  • Lumen Efficiency :
  • 120 - 130 Lm/W
  • Efficiency :
  • > 88%
  • Surge Protection :
  • 4 KvA
  • CCT :
  • 3000K - 6500K
  • Beam Angle :
  • 120°
  • IP Rating :
  • IP 65
  • Housing Body :
  • Aluminium Die-Casting
  • Driver Details :
  • BIS Certified
    Over / Under Voltage Protection
    Over Temperature Protection
    440v Sustainability (48hrs)

Dimensions


3 m Height

  • Pipe :
  • 12 x 6 x 0.22 cm
  • Plate :
  • 20 x 20 x 0.8 cm

4 m Height

  • Pipe :
  • 12 x 6 x 0.22 cm
  • Plate :
  • 20 x 20 x 0.8 cm

5 m Height

  • Pipe :
  • 12 x 6 x 0.22 cm
  • Plate :
  • 20 x 20 x 0.8 cm

6 m Height

  • Pipe :
  • 12 x 6 x 0.22 cm
  • Plate :
  • 20 x 20 x 0.8 cm
