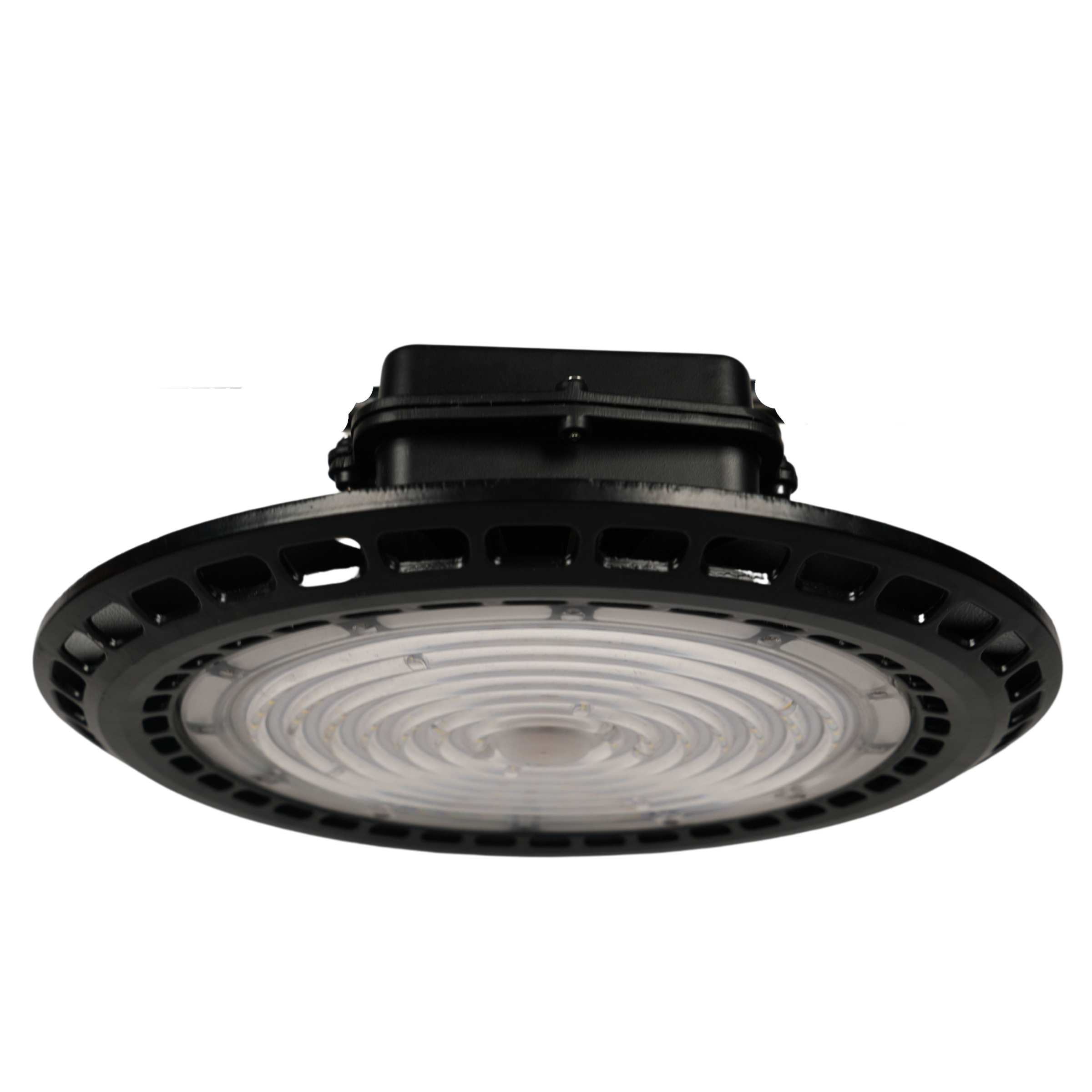

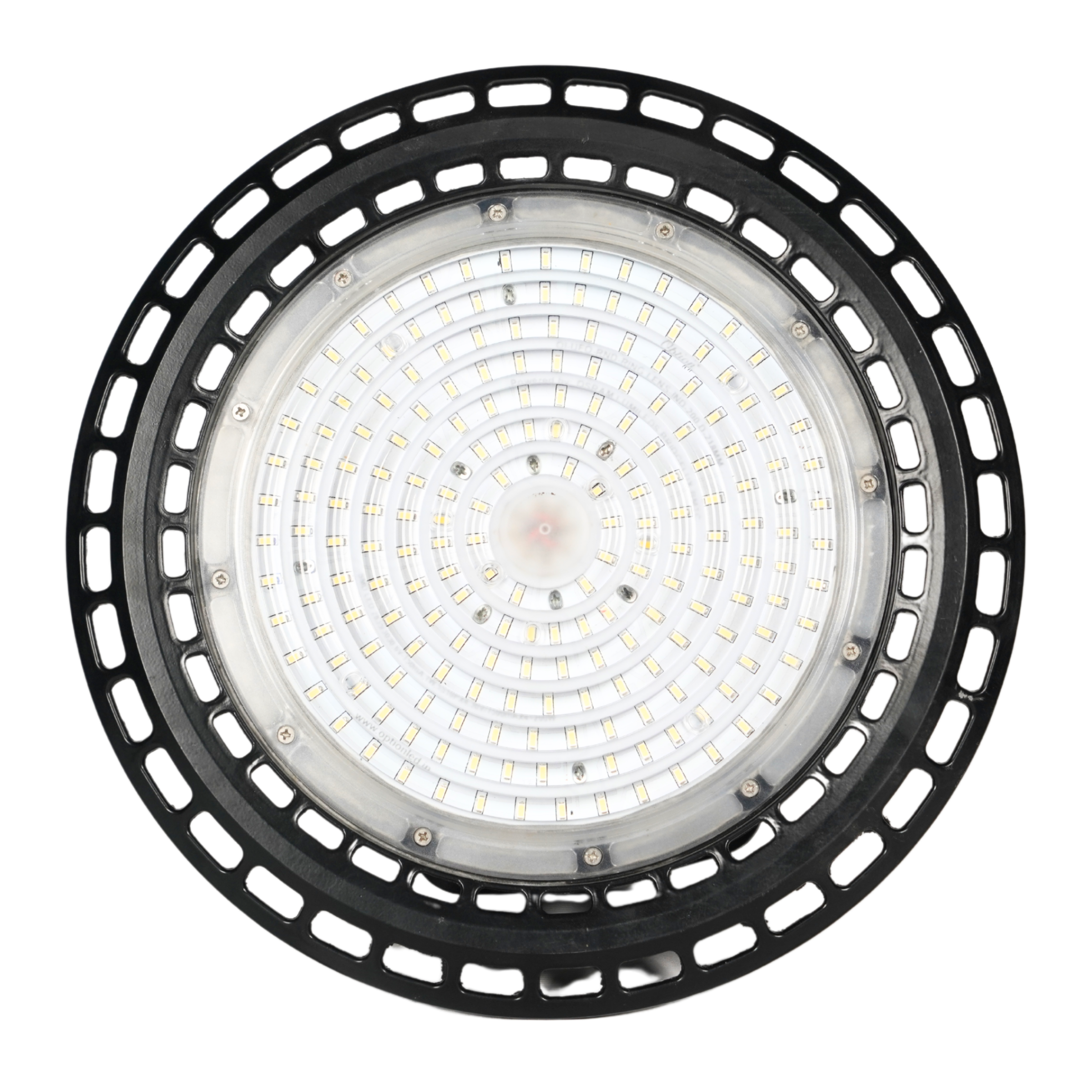

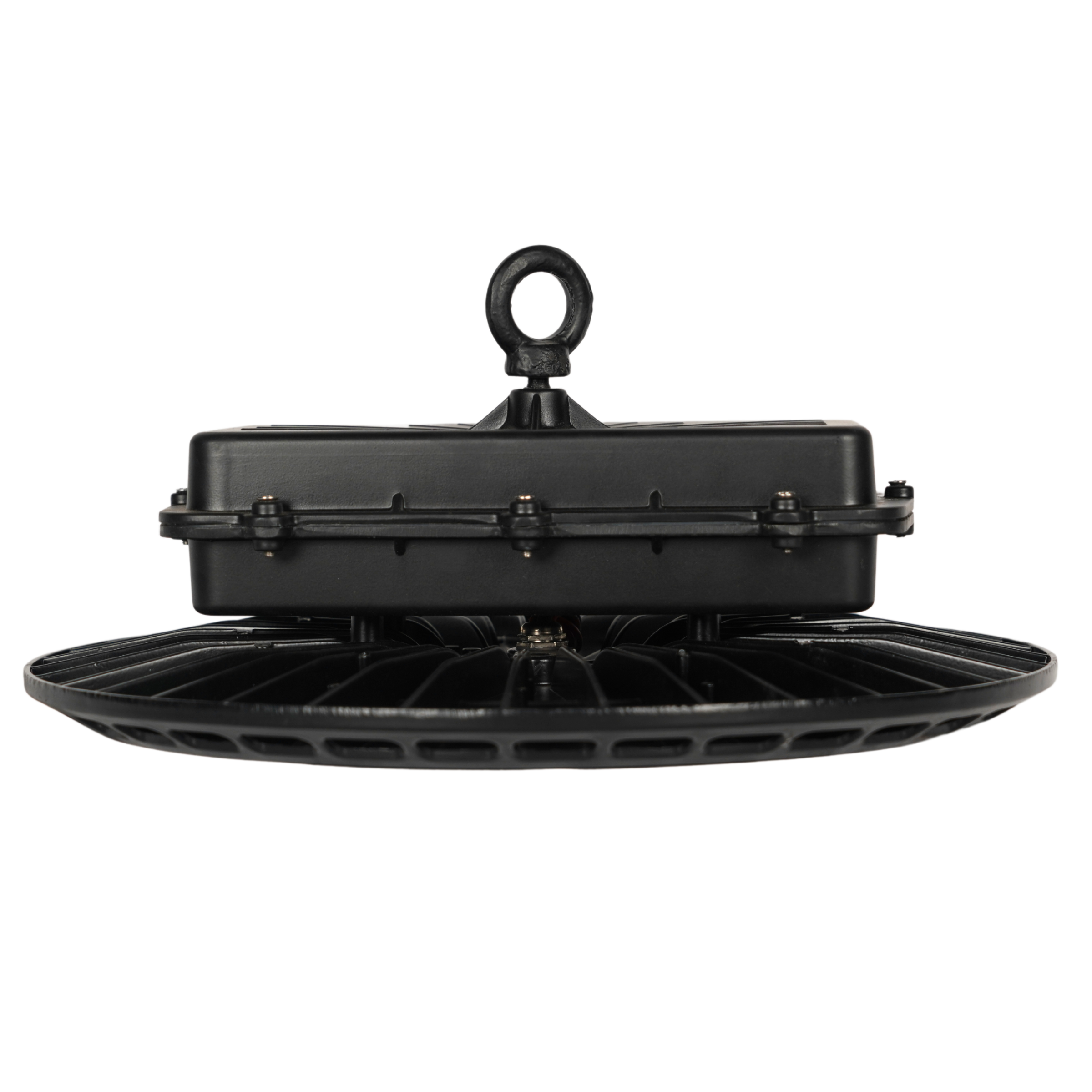

LED UFO Highbay Round Linear Lens

Enhance your large indoor spaces with the advanced LED UFO Highbay Round Linear Lens, a premium lighting solution designed for superior illumination and efficiency.

Combining a sleek round design with innovative linear lens technology, this highbay light ensures optimal light distribution and energy savings. Perfect for warehouses, factories, gymnasiums, and retail environments, the LED UFO Highbay Round Linear Lens delivers bright, even lighting to meet your needs.

CLICK TO ENQUIRE

Applications


Certification 1

Factories

Certification 1

Warehouses

Certification 1

Storages


Certifications


Certification 1
Certification 2
Certification 3
Certification 4
Certification 5
Certification 6

Specifications


  • Light Source :
  • SMD LED 2835 / 3030 1W (LM 80)
  • Efficiency :
  • > 88%
  • Power Factor :
  • > 0.95
  • THD :
  • < 10%
  • Lumen Efficiency :
  • 120 - 130 Lm/W
  • Surge Protection :
  • 4 - 10 KvA
  • CCT :
  • 3000K - 6500K
  • IP Rating :
  • IP 65
  • Beam Angle :
  • 70 * 140°
  • Housing Body :
  • Aluminium Die-Casting
  • Driver Details :
  • BIS Certified
    Over / Under Voltage Protection
    Over Temperature Protection
    440v Sustainability (48hrs)
    Short Circuit Protection
    Open Circuit Protection

Dimensions


  • 100 W :
  • 26.67 x 26.67 x 13.34 cm
  • 150 W :
  • 26.67 x 26.67 x 13.34 cm
  • 200 W :
  • 36.83 x 36.83 x 12.70 cm
