LED UFO Highbay Square

Illuminate large spaces with the cutting-edge LED UFO Highbay Square, a powerful lighting solution designed for industrial and commercial applications. With its unique square design and high-efficiency LED technology, this highbay light provides superior brightness and energy savings.

Ideal for warehouses, factories, gymnasiums, and retail stores, the LED UFO Highbay Square ensures optimal light distribution and enhanced visibility.

CLICK TO ENQUIRE

Applications


Certification 1

Factories

Certification 1

Warehouses

Certification 1

Storages


Certifications


Certification 1
Certification 2
Certification 3
Certification 4
Certification 5
Certification 6

Specifications


  • Light Source :
  • SMD LED 2835 / 3030 1W (LM 80)
  • Efficiency :
  • > 88%
  • Power Factor :
  • > 0.95
  • THD :
  • < 10%
  • Lumen Efficiency :
  • 120 - 130 Lm/W
  • Surge Protection :
  • 4 - 10 KvA
  • CCT :
  • 3000K - 6500K
  • IP Rating :
  • IP 65
  • Housing Body :
  • Aluminium Die-Casting
  • Driver Details :
  • BIS Certified
    Over / Under Voltage Protection
    Over Temperature Protection
    440v Sustainability (48hrs)
    Short Circuit Protection
    Open Circuit Protection

Dimensions

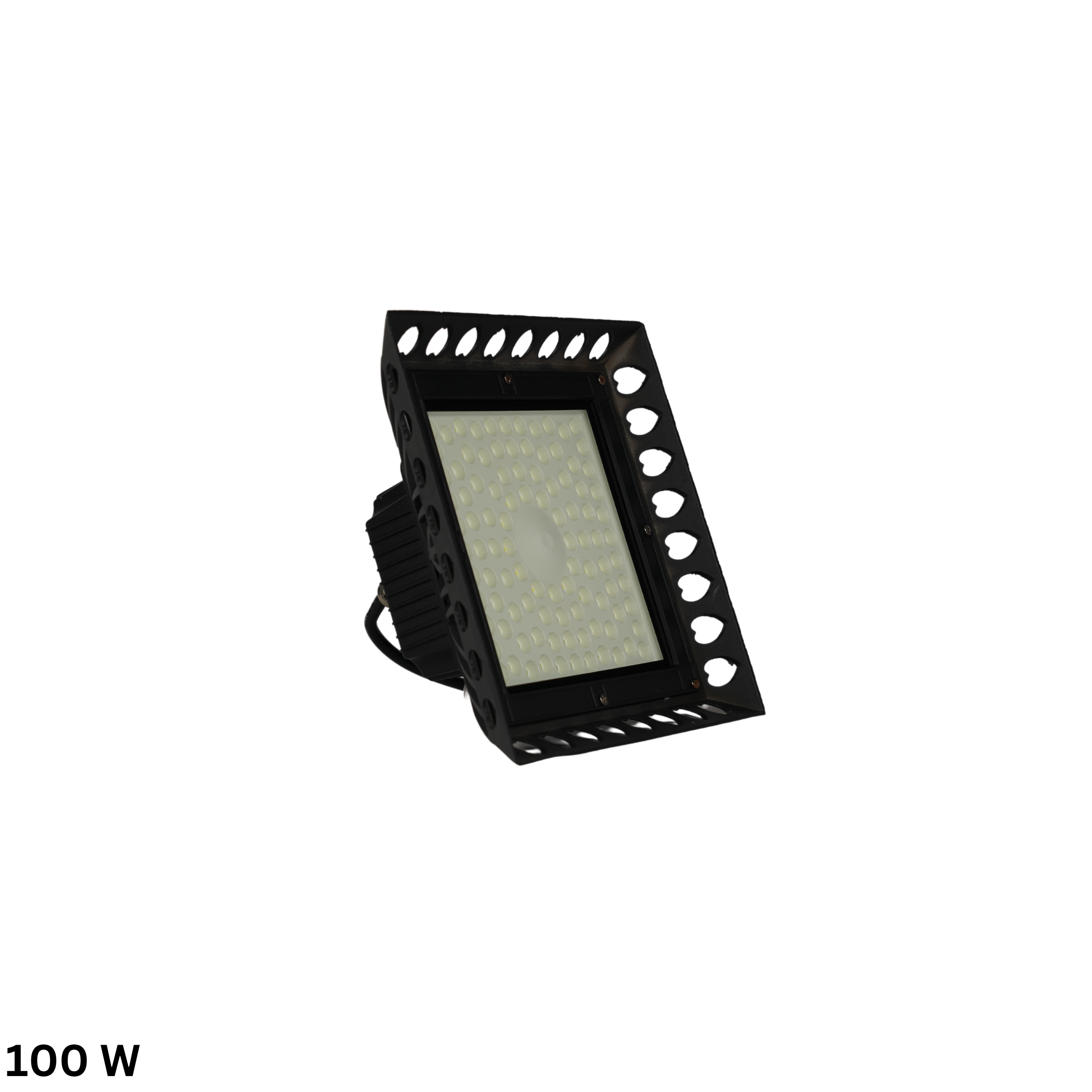

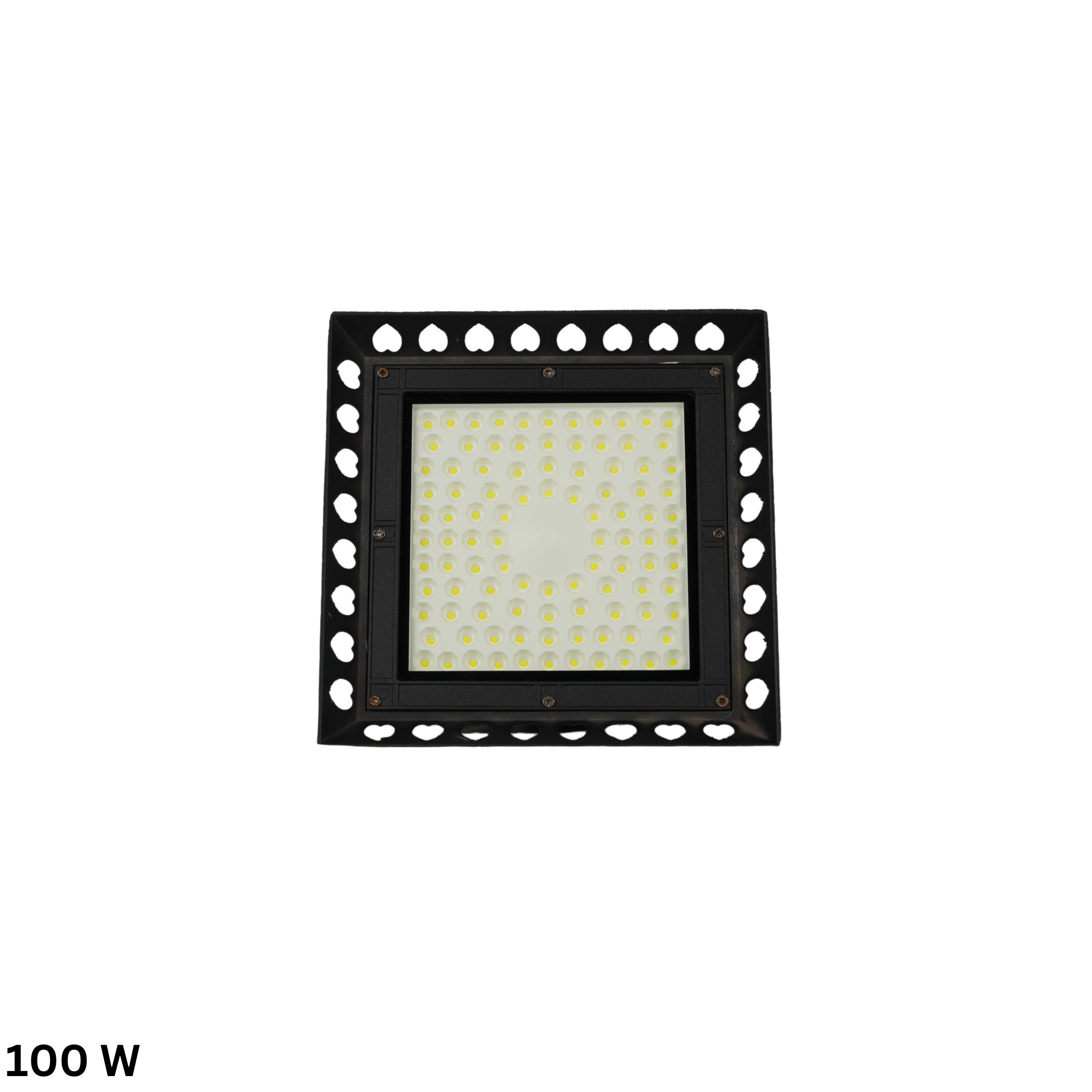

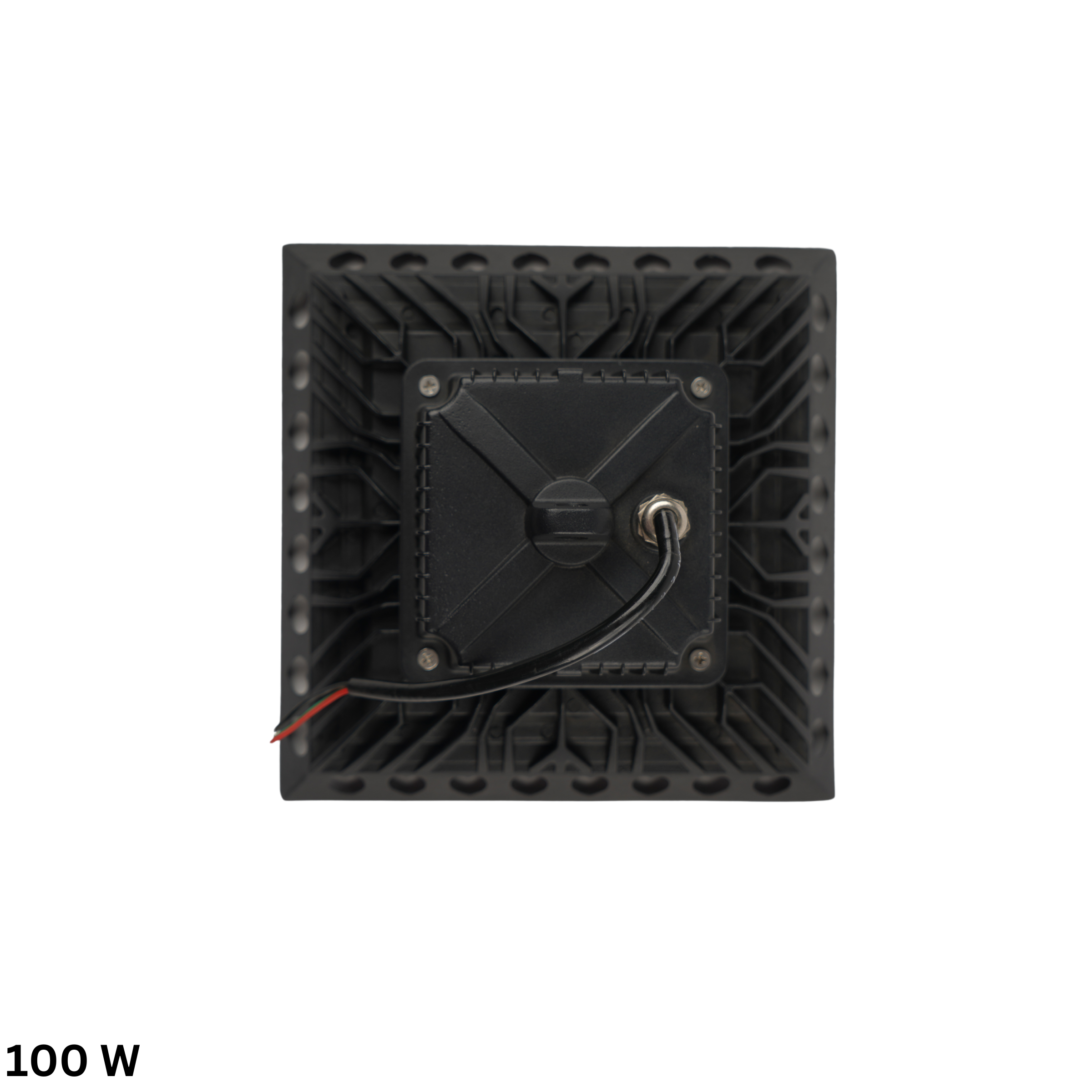

  • 100 W :
  • 22.86 x 22.86 x 13.34 cm

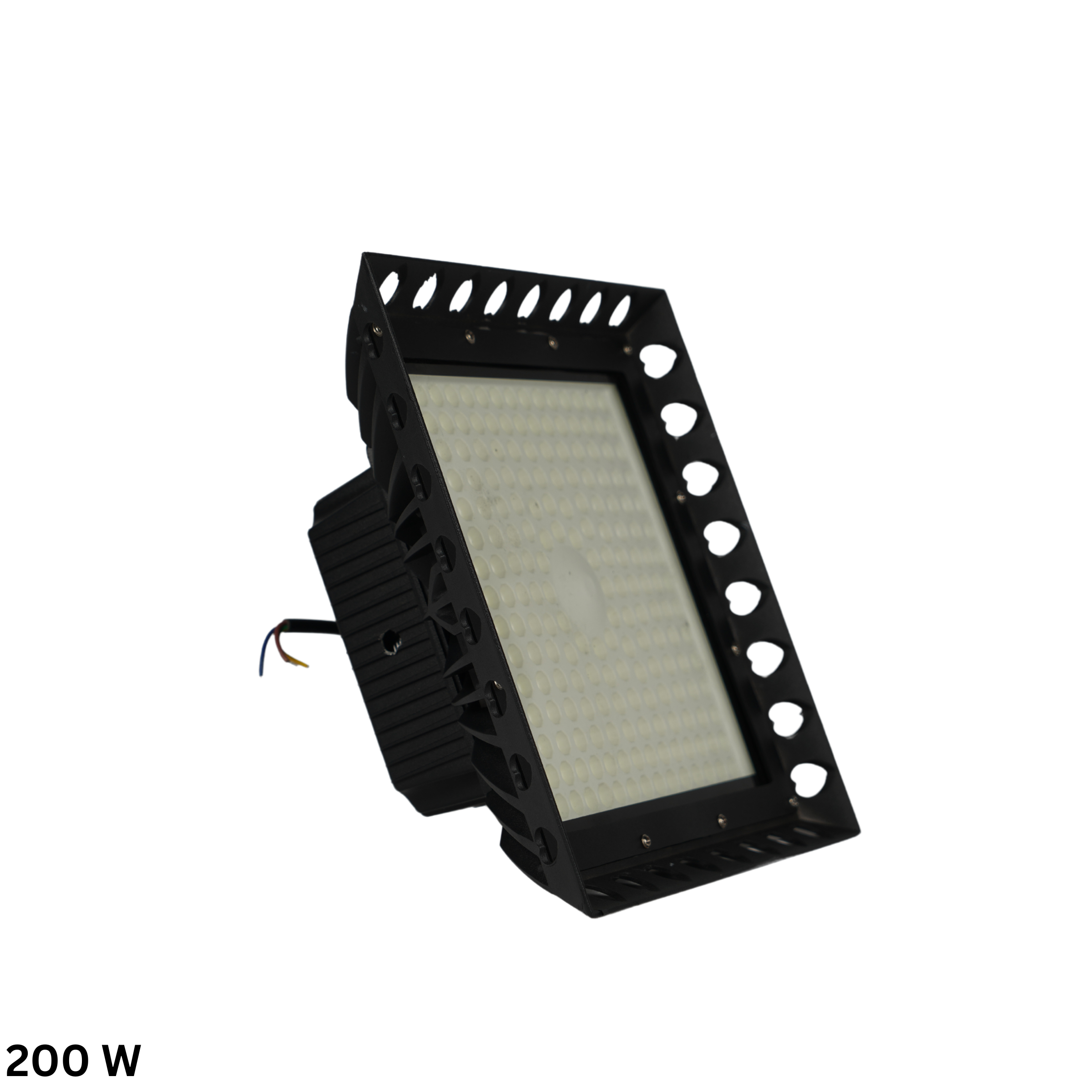

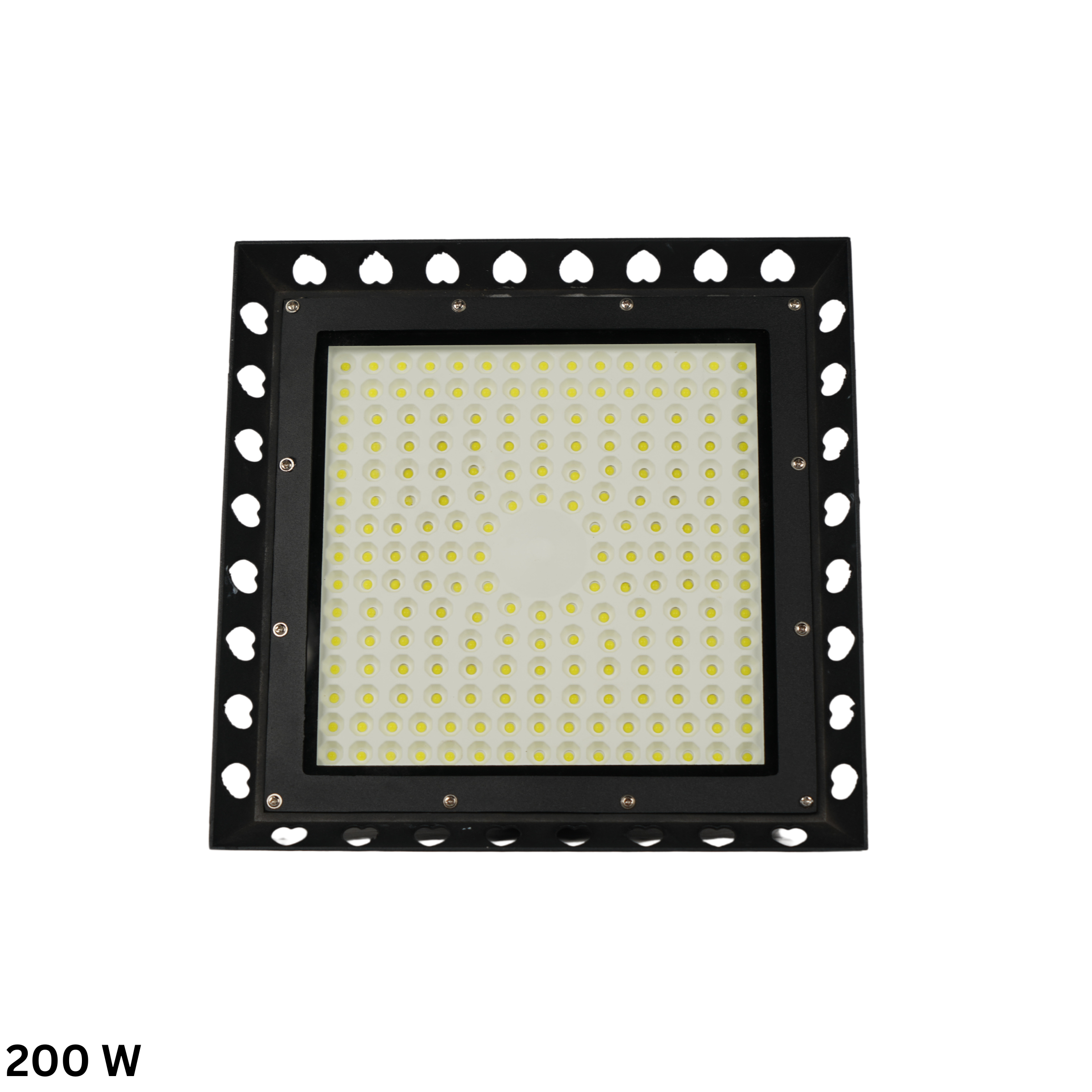

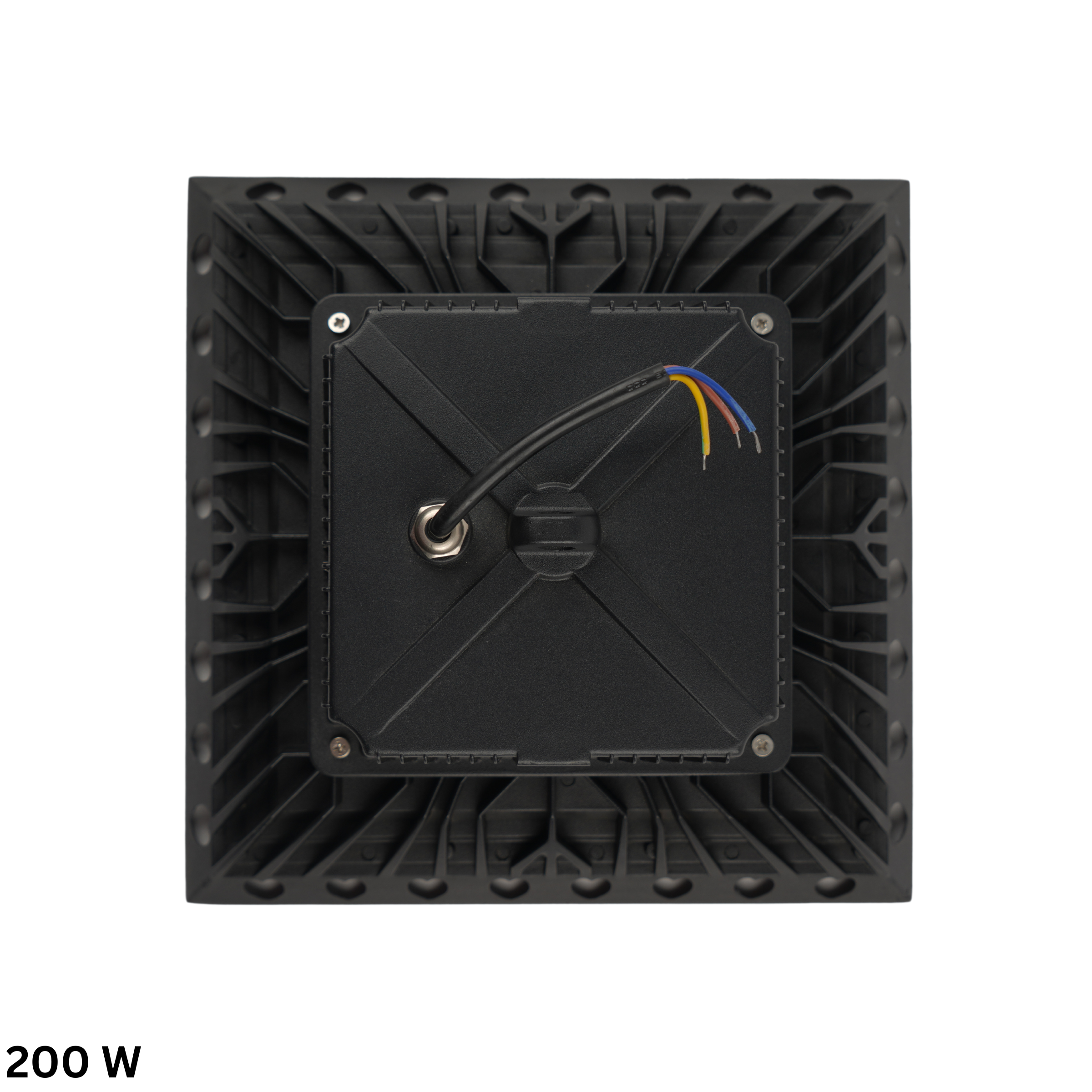

  • 200 W :
  • 28.58 x 28.58 x 13.97 cm

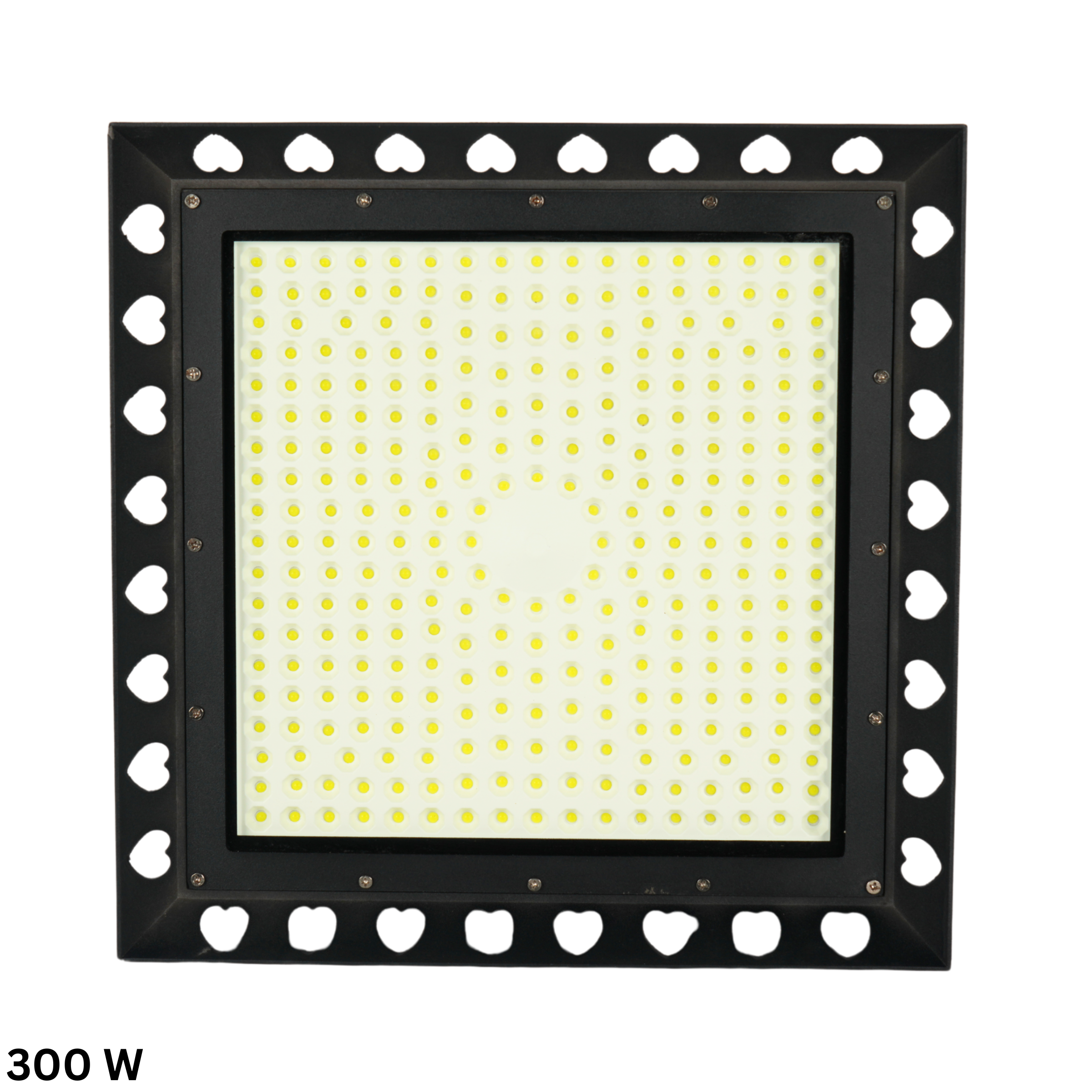

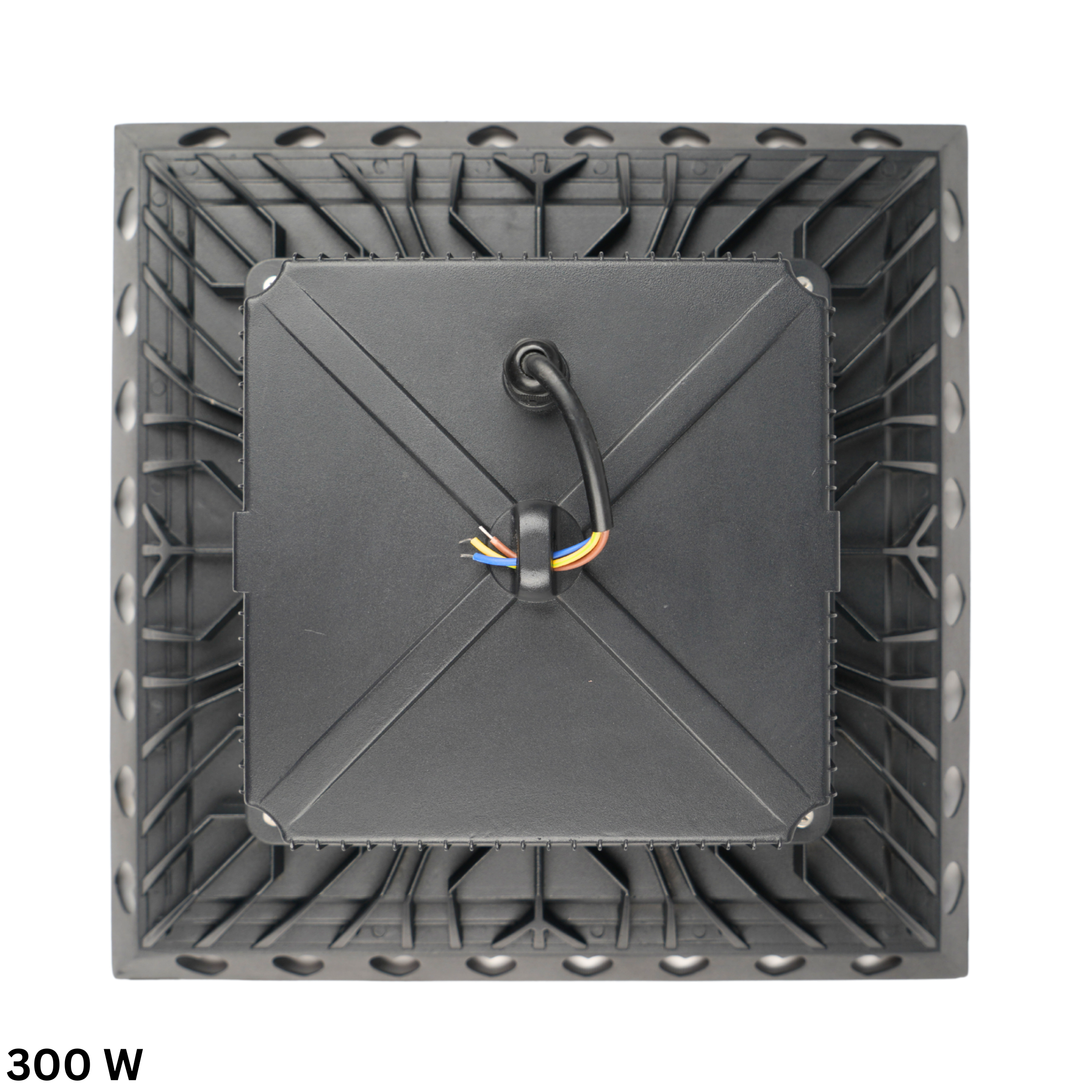

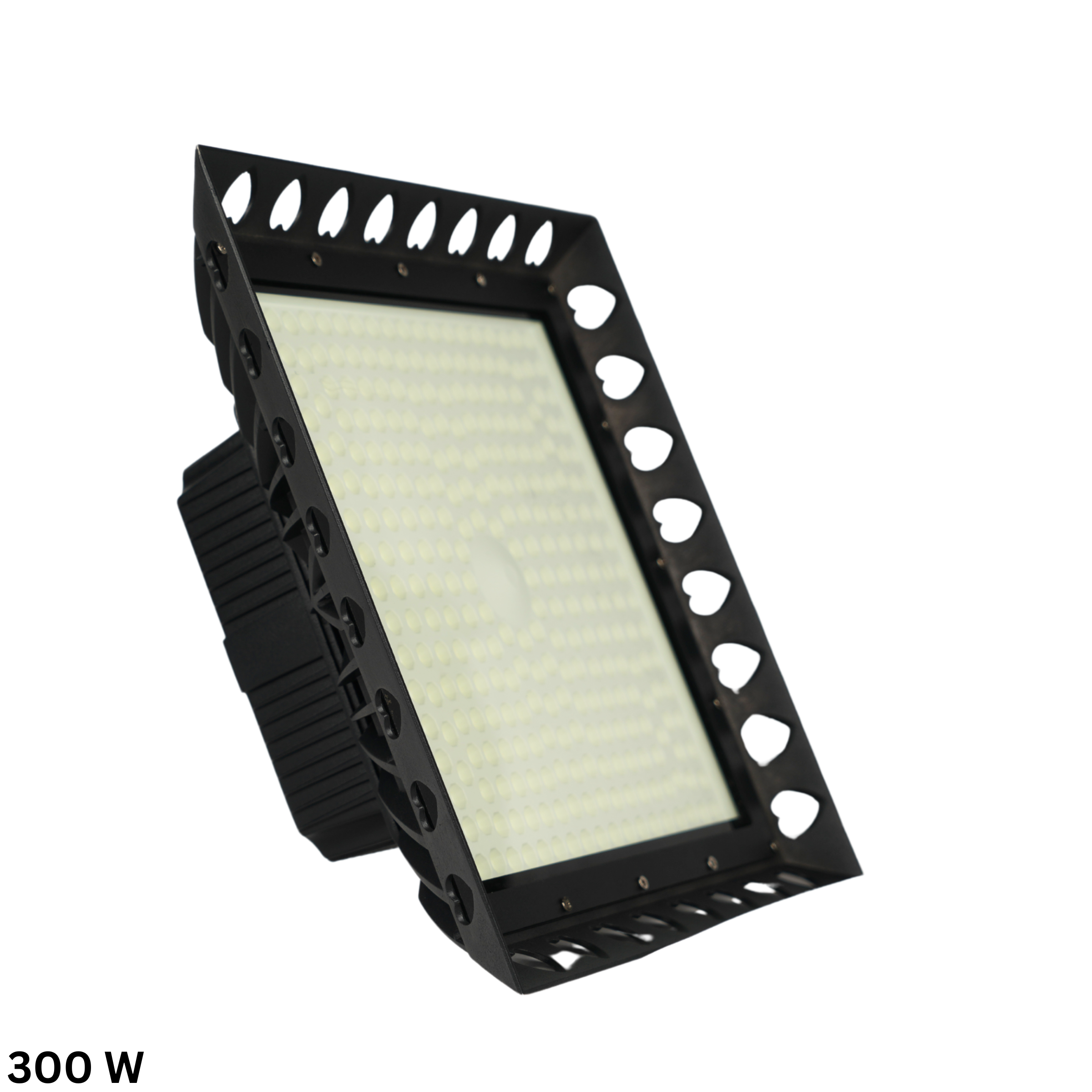

  • 300 W :
  • 34.29 x 34.29 x 14.61 cm
